T08

Appreciation

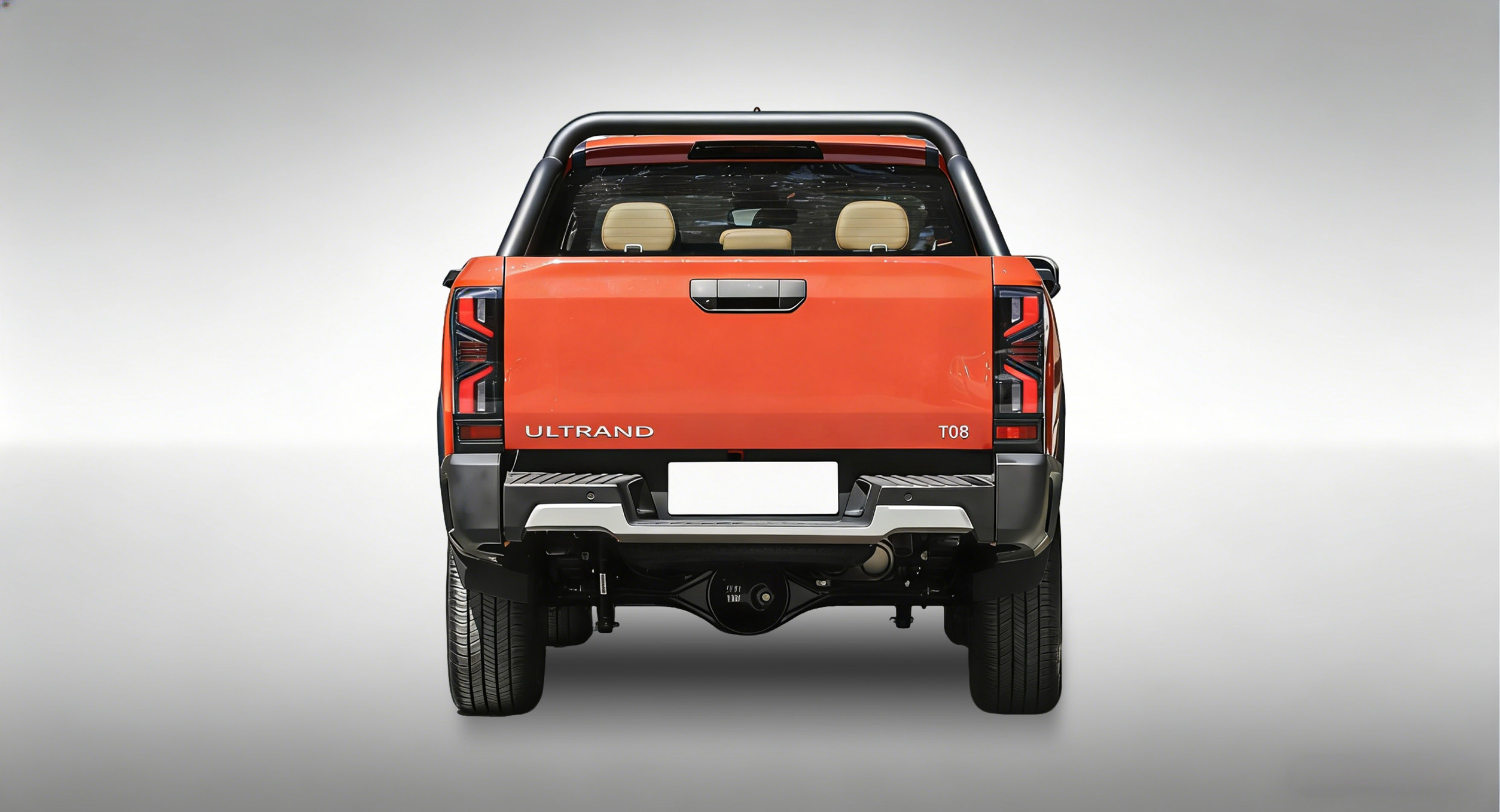

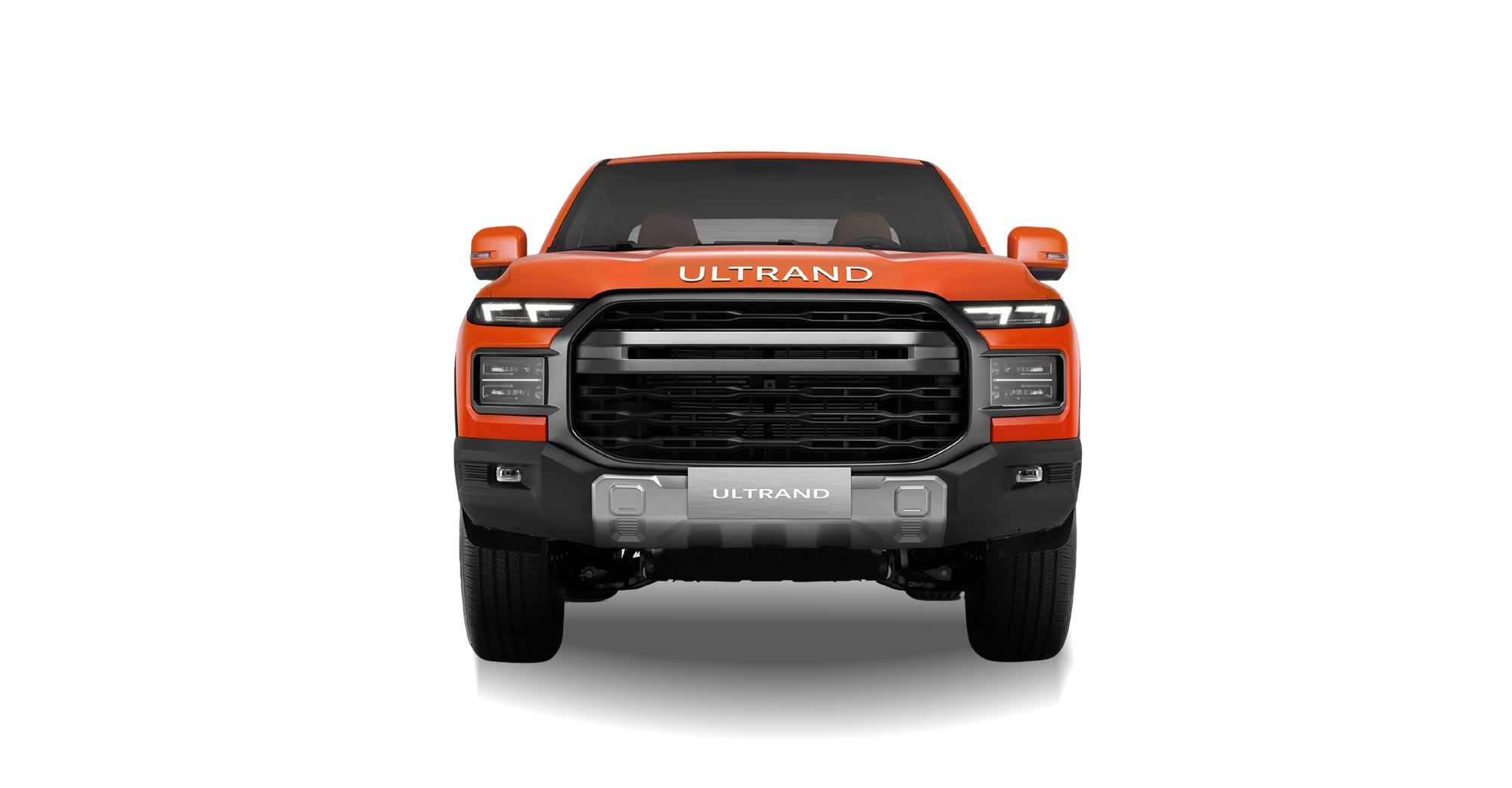

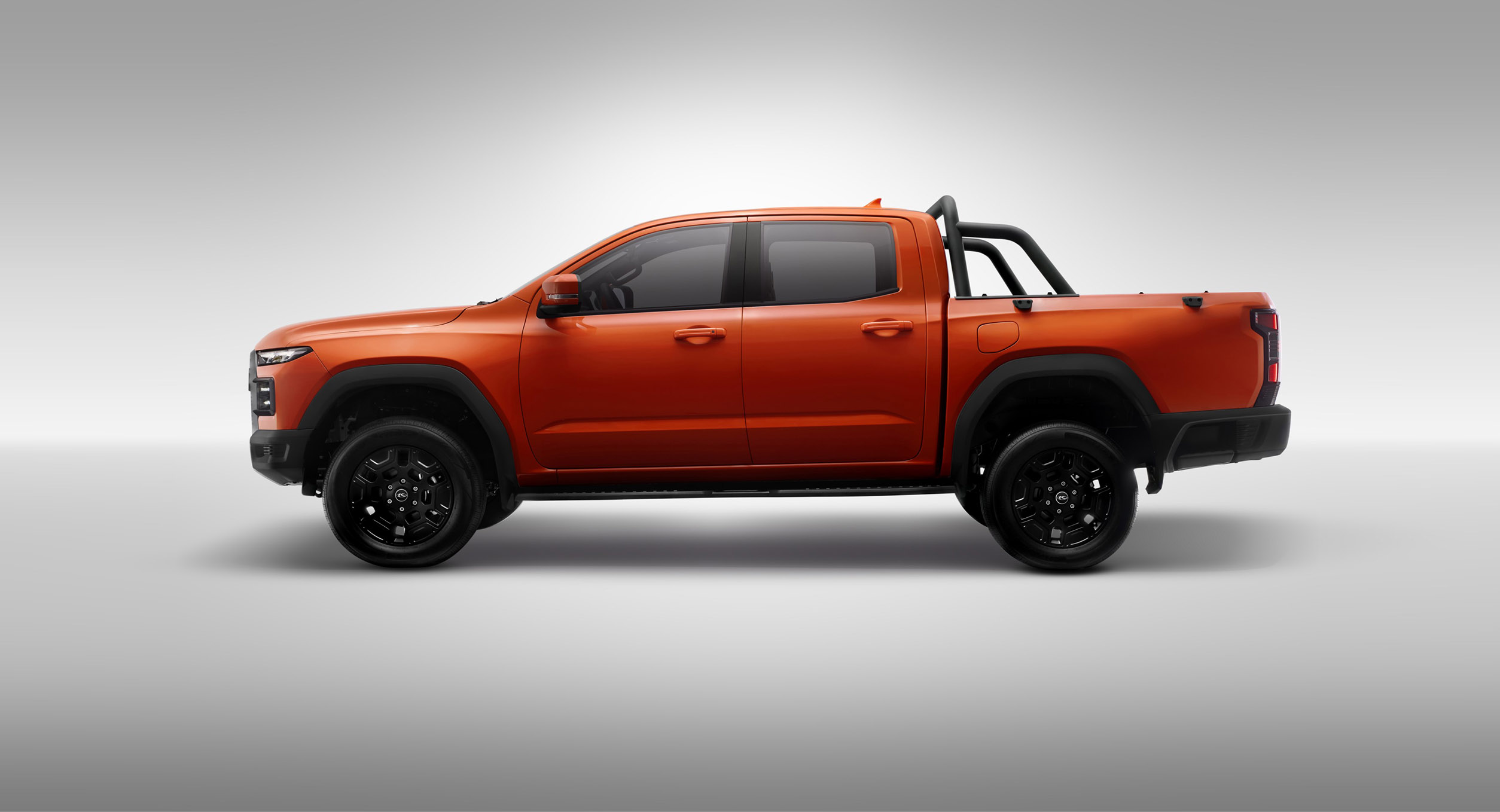

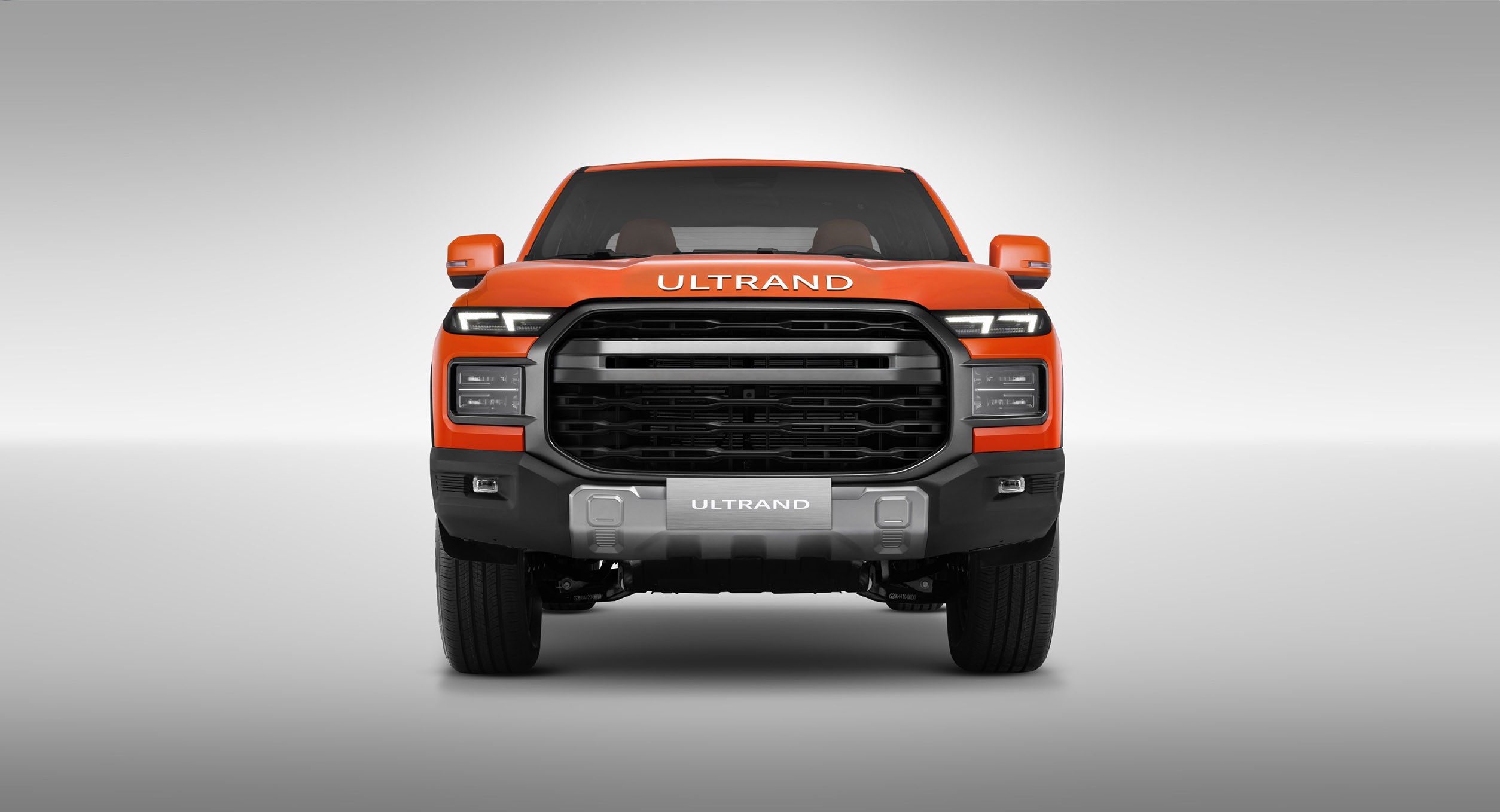

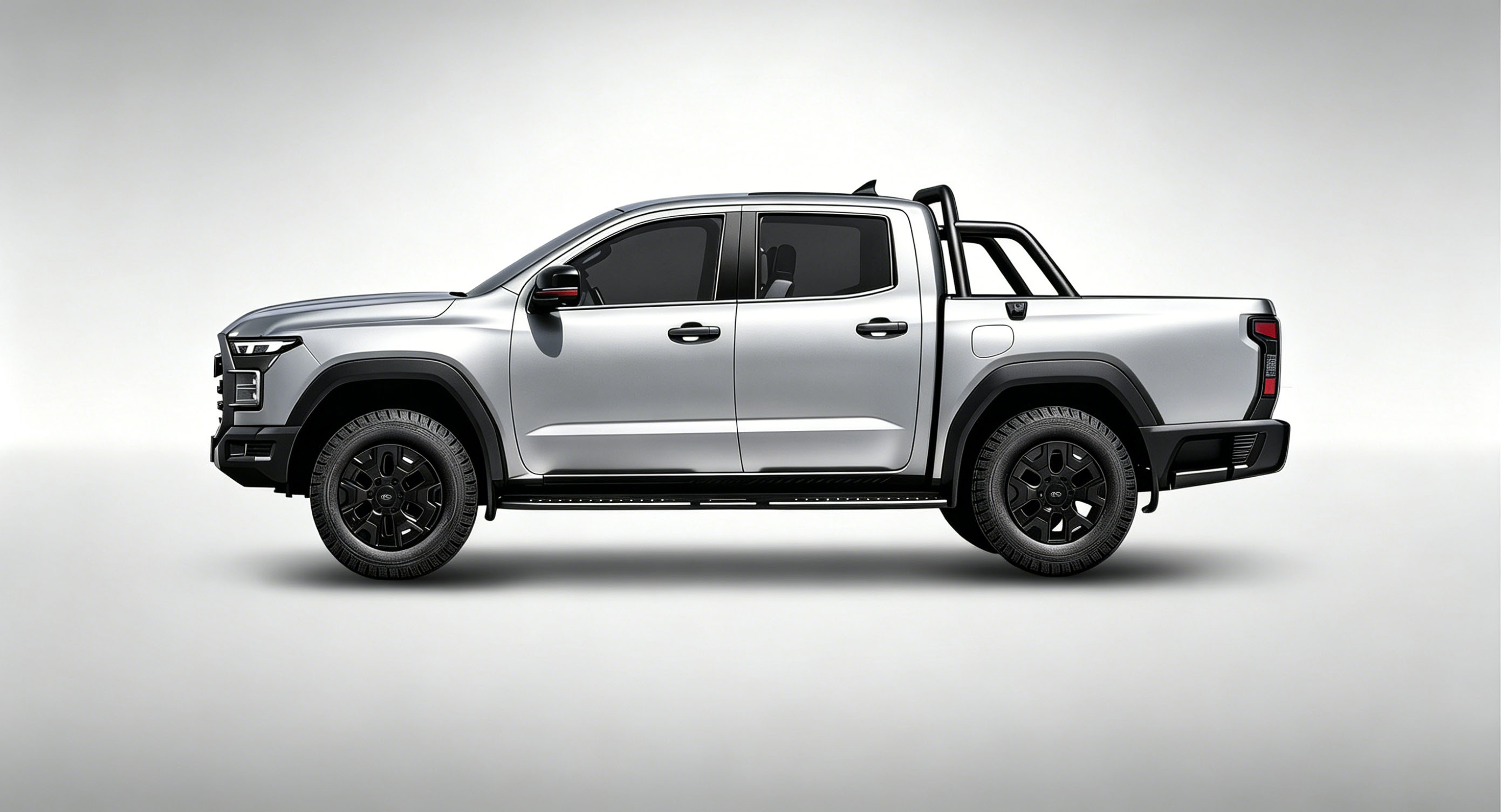

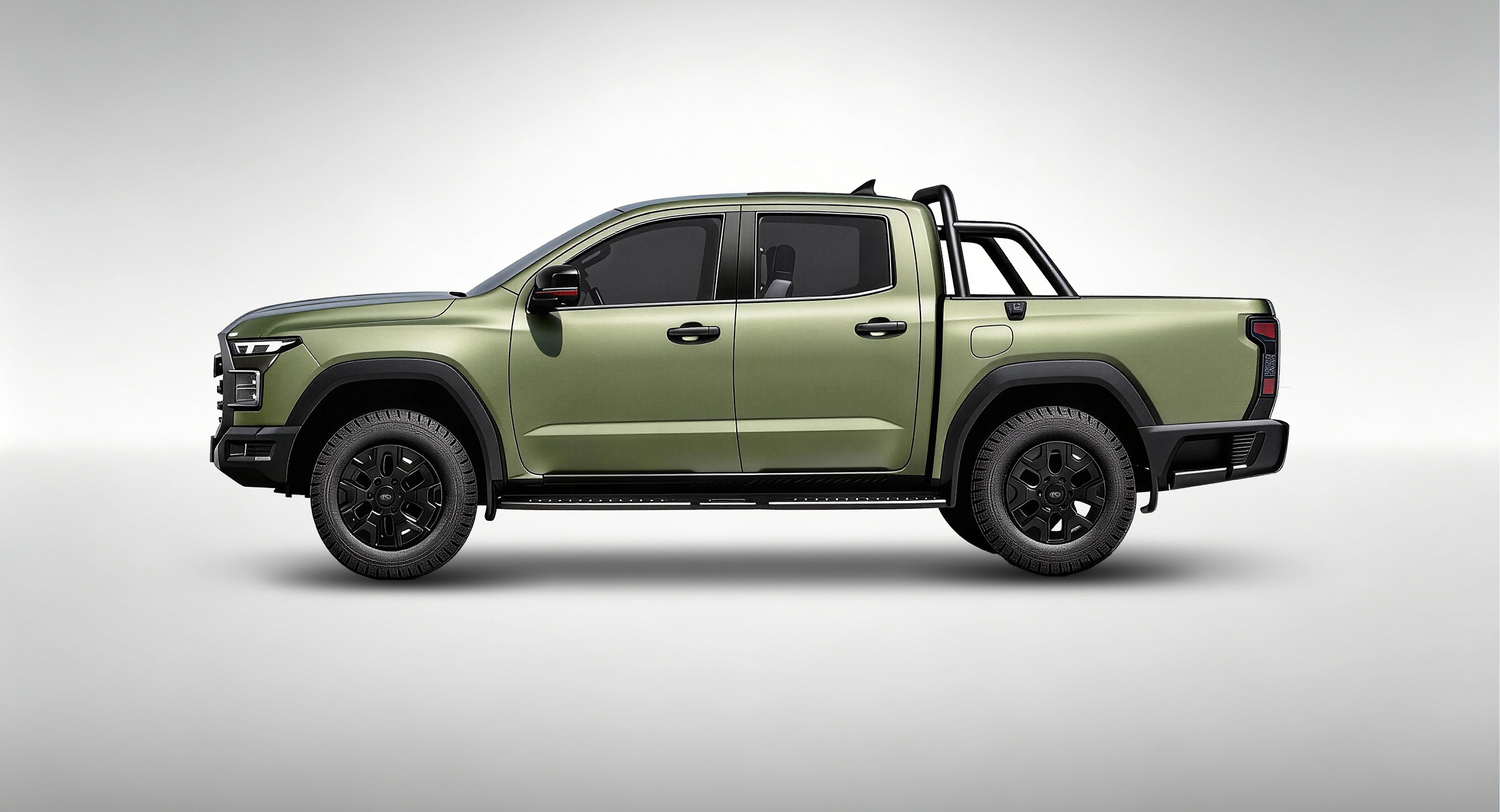

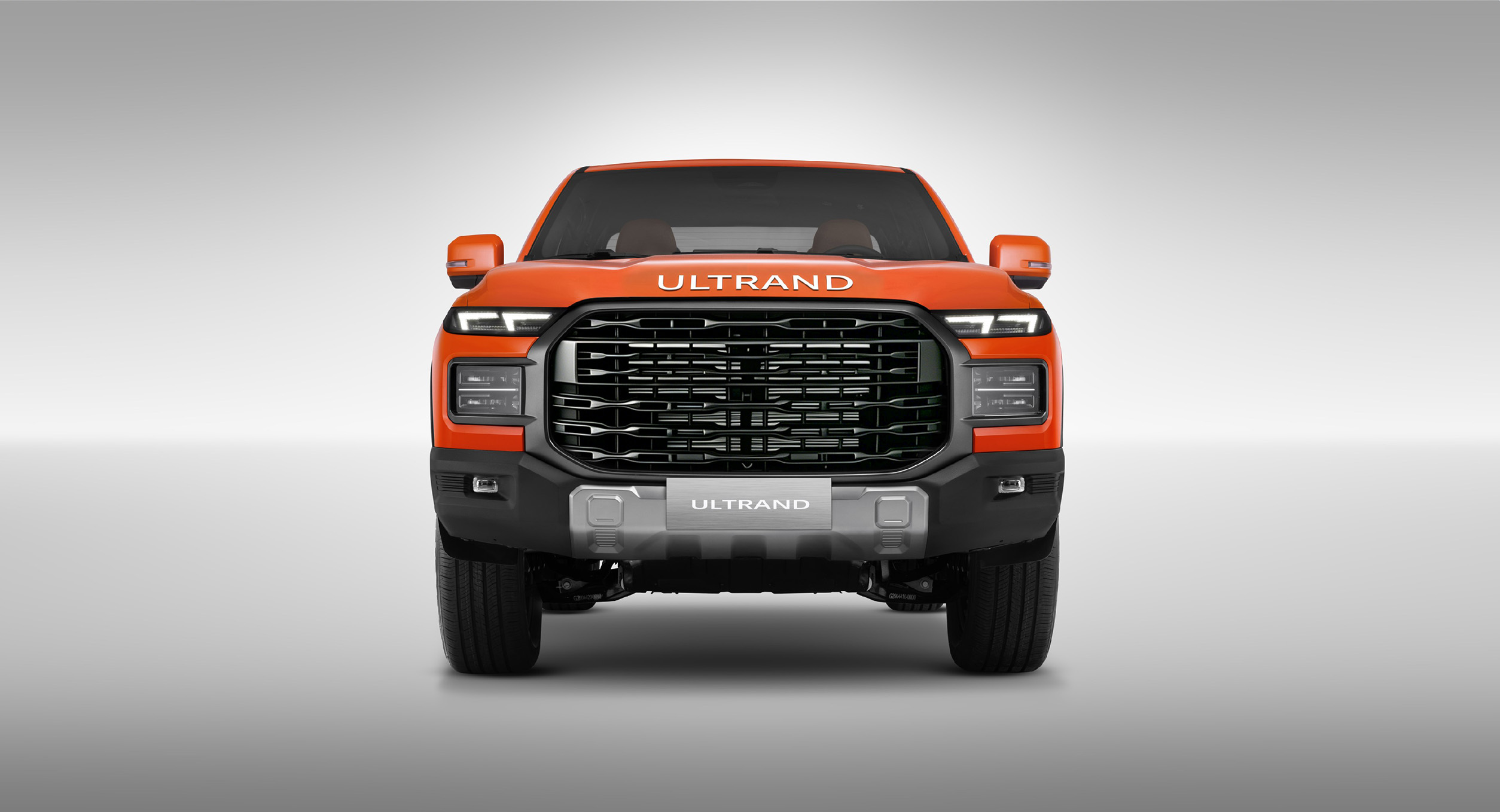

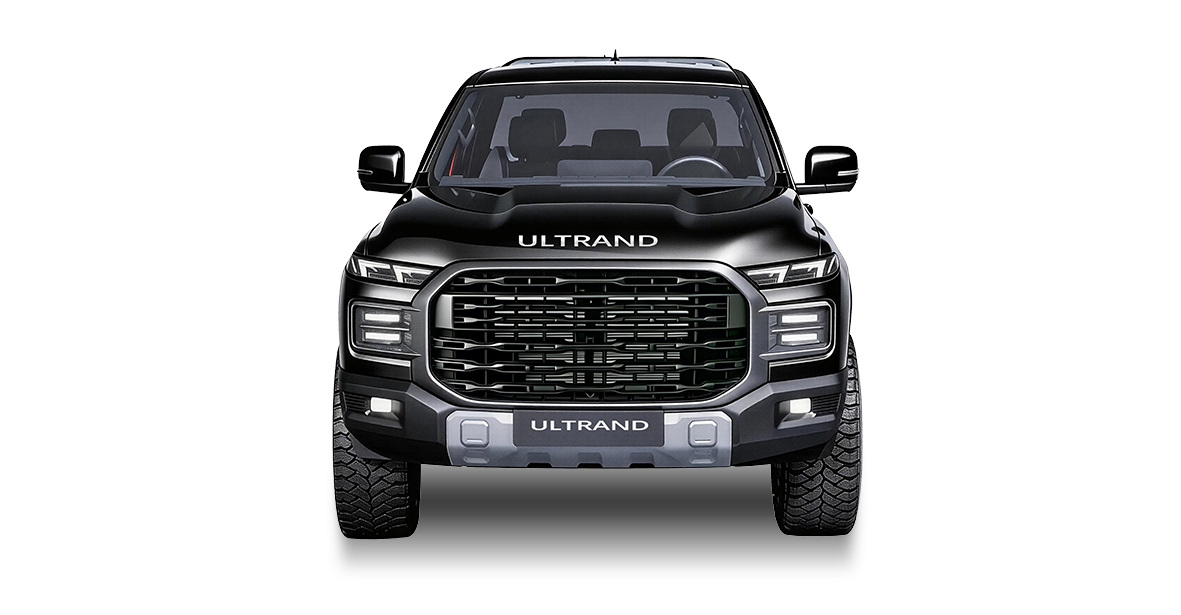

Vehicle Overview
Length(mm)
5610
Width(mm)
1920
Height(mm)
1890
Wheelbase(mm)
3510
Length(mm)
5610
Width(mm)
1920
Height(mm)
1890
Wheelbase(mm)
3510
Length(mm)
5610
Width(mm)
1920
Height(mm)
1890
Wheelbase(mm)
3510
Length(mm)
5610
Width(mm)
1920
Height(mm)
1890
Wheelbase(mm)
3510
Length(mm)
5610
Width(mm)
1920
Height(mm)
1890
Wheelbase(mm)
3510
  • Qilin Orange

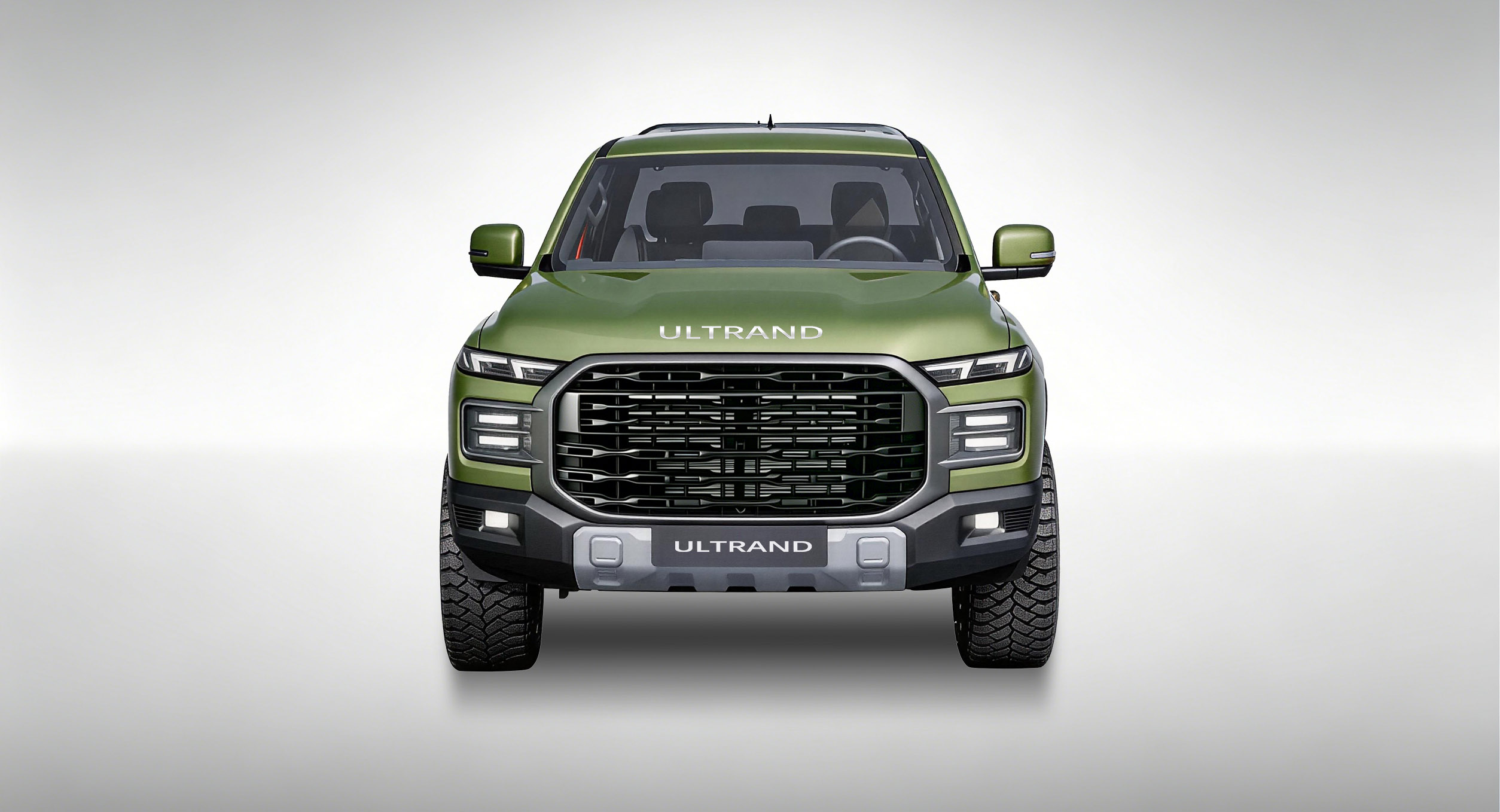

  • Jungle Green

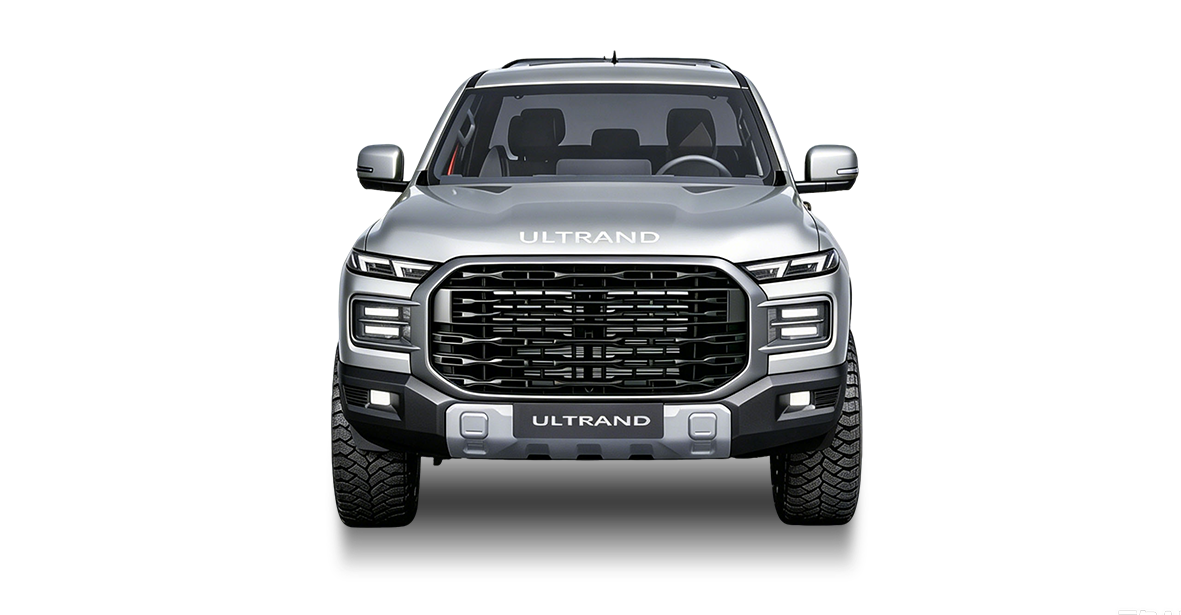

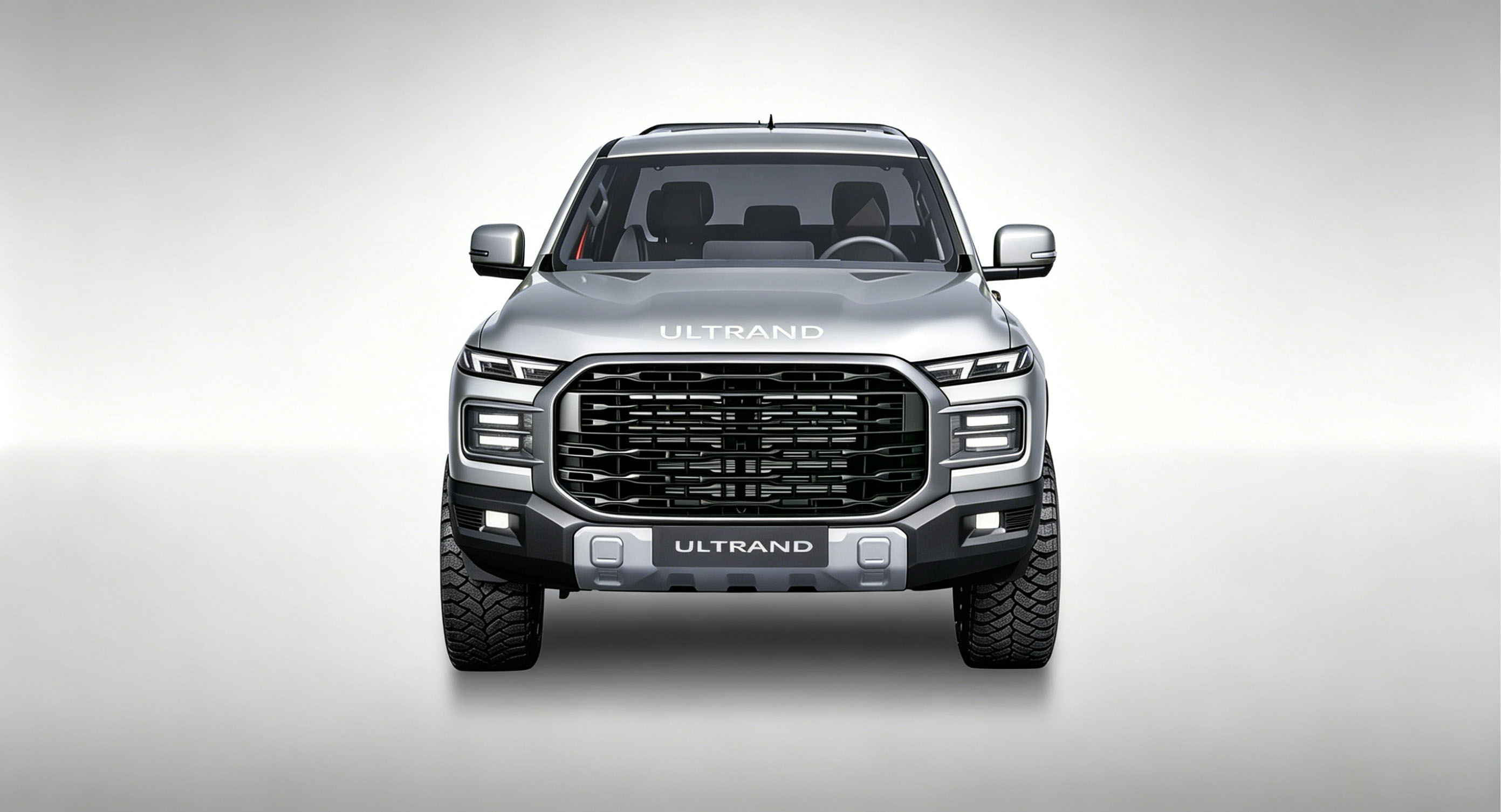

  • Meteorite Silver

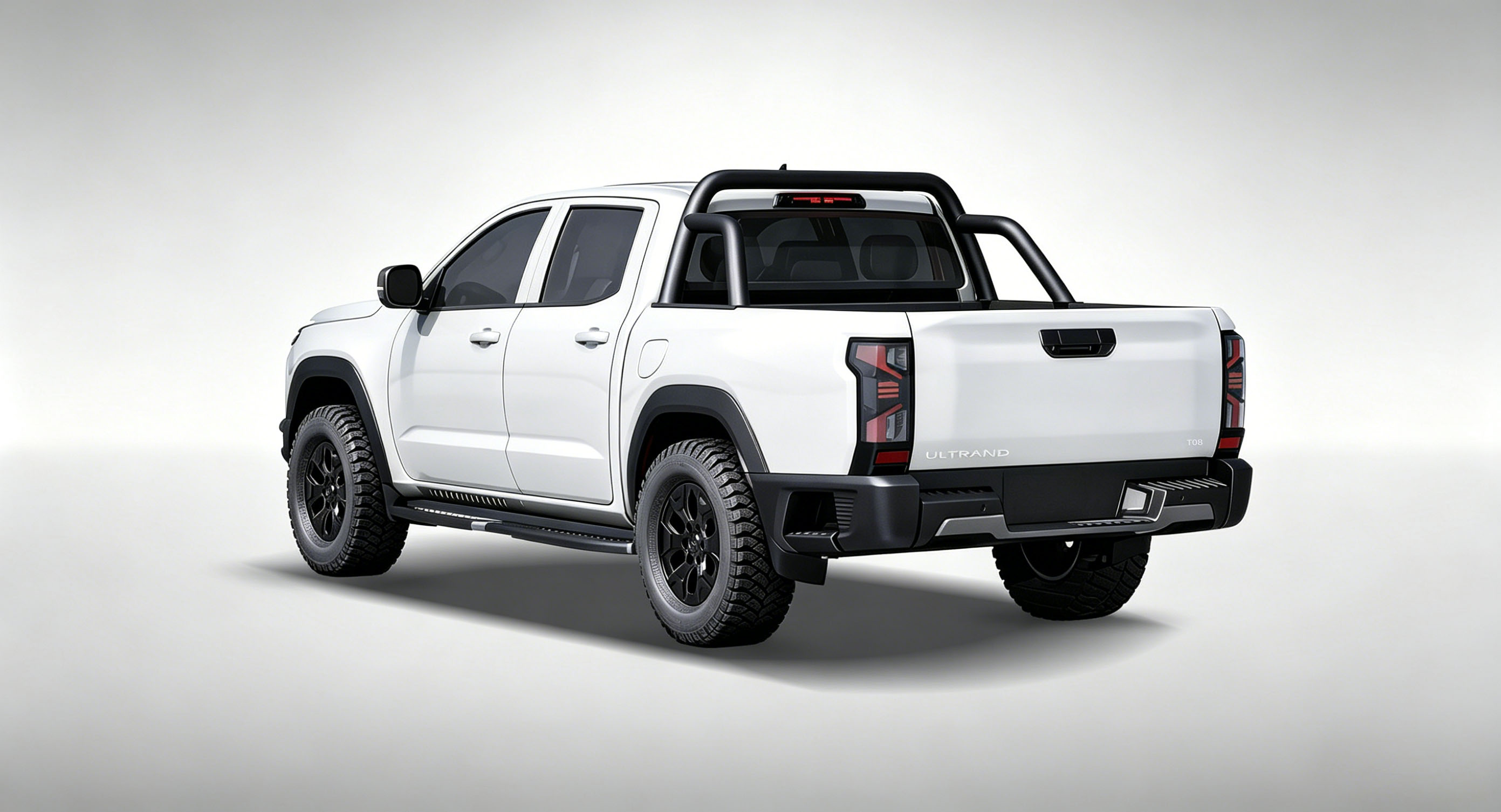

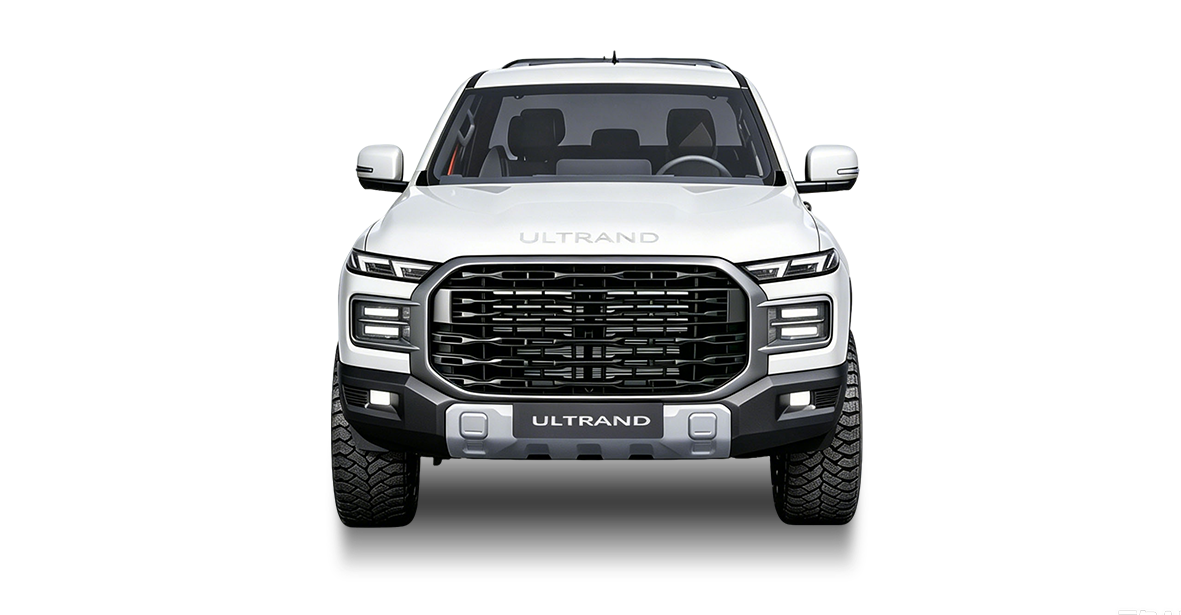

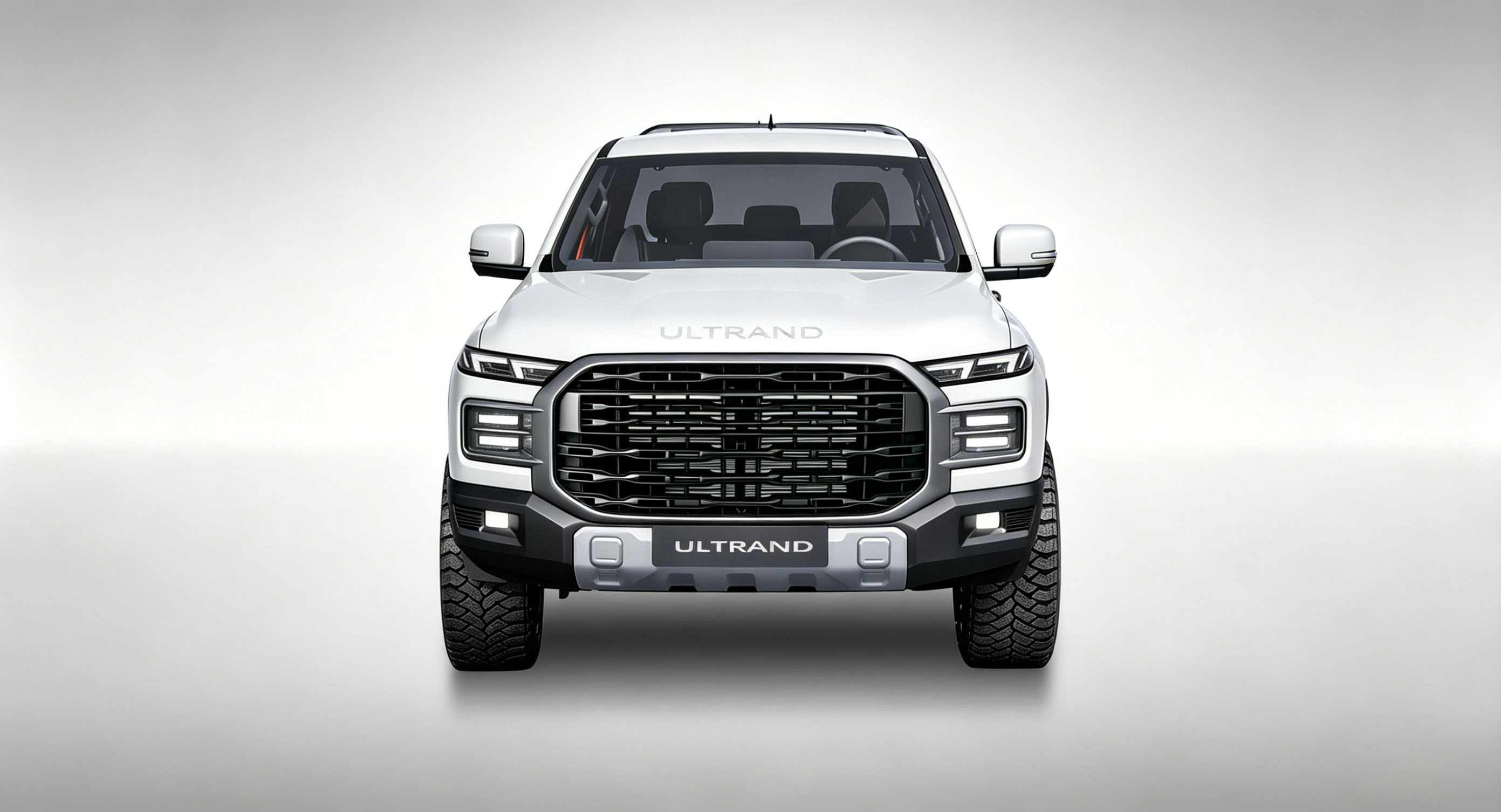

  • Khaki White

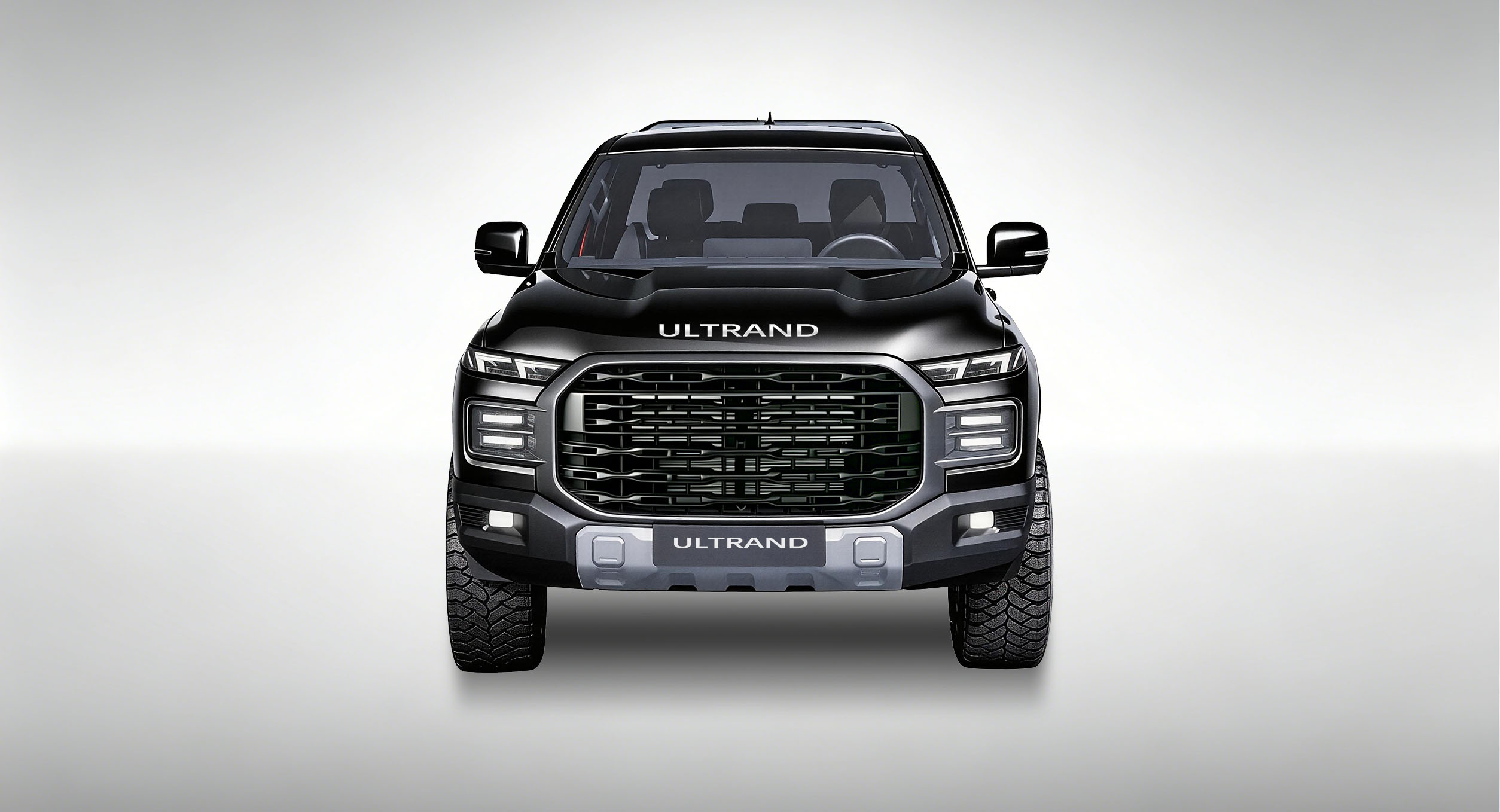

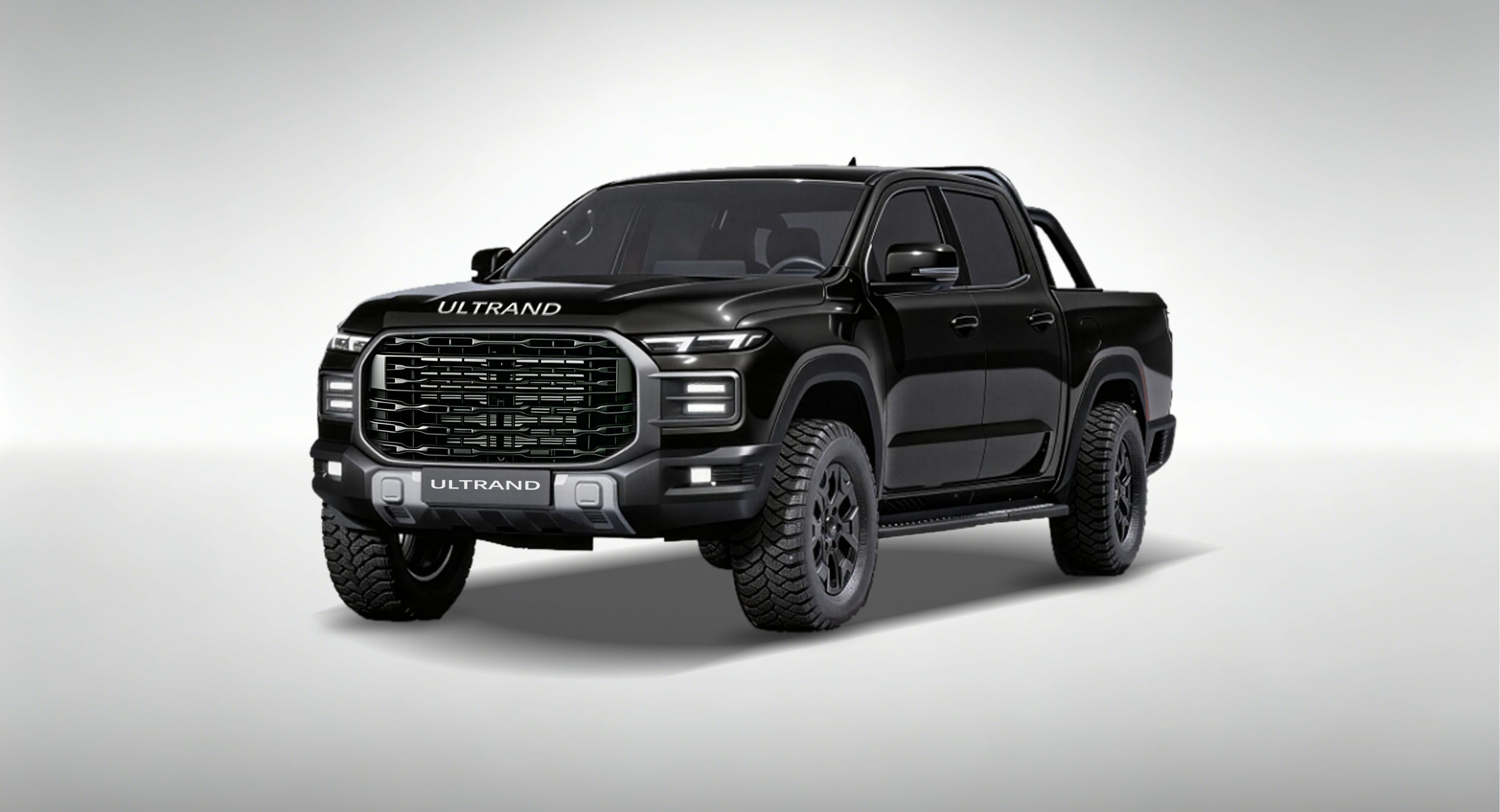

  • Obsidian Black
Product Highlights
Easy handling, generous storage

15.6-inch HD display,

while retaining piano-key mechanical buttons.

26 cabin storage compartments – practicality maxed out.

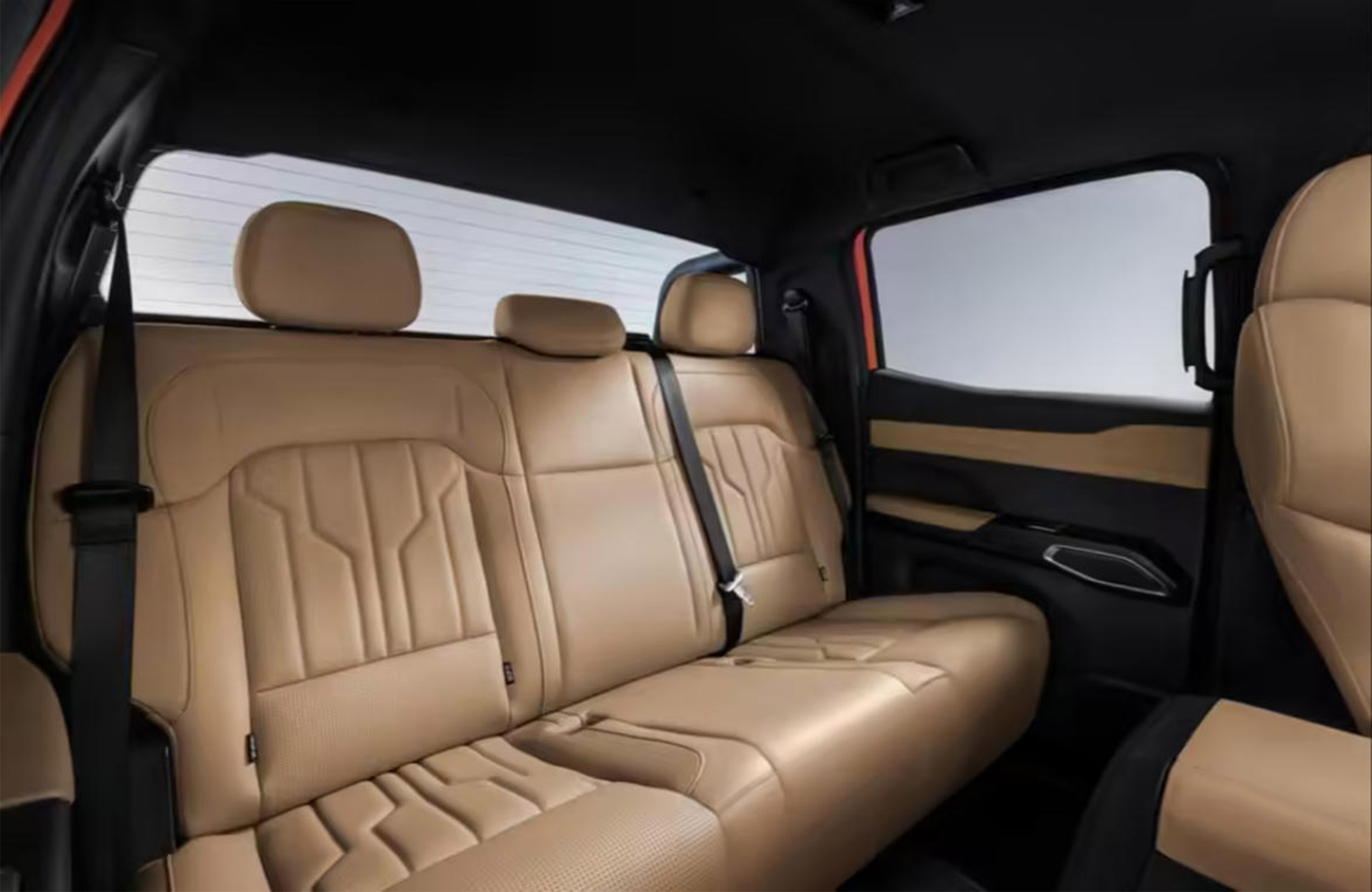

Front cabin comfort, rear cabin ease

Ergonomic segmented seating.

Rear seats: 26° recline + longer cushions.

Passenger-car experience, built into pickup DNA.

Product Configuration
    TO8 Model Specification Sheet



      ■ Emissions request China VI Stage B China VI Stage B
     ■ Powertrain 2.3T 8AT 2WD Double Cab Long Box 2.3T 8AT 4WD Double Cab Long Box
     ■ Fuel type Diesel Diesel
     ■ Model Trail Edition Mountain Edition
1      Length × width × height (mm) 5610×1920×1890 5610×1920×1890
   2
      Cargo compartment dimensions (length x width x height mm) 1810×1620×515 1810×1620×515
   3
       Wheelbase (mm) 3510 3510
   4
       Wheelbase (front/rear) (mm) 1590/1590 1590/1590
   5
       Minimum ground clearance when fully loaded (mm) ≥200 ≥200
   6
       Minimum turning radius (m)  ≤7.01  ≤7.01
   7
       Curb weight (kg)  2080  2190
   8
       Total mass (kg)  3180  3290
   9
       Rated load capacity (kg)  1100  1100
  10
       Tire specifications  265/60 R18  265/60 R18
  11
       Number of seats   5 5

       ■ Powertrain
  12
       Engine model  M9T（Dongfeng Light Engine） M9T（Dongfeng Light Engine）
13
Displacement (cc)
 2298 2298
14 Rated power (kW/rpm) 120/3500 120/3500
15 Maximum torque (Nm/rpm) 420/1500-2500  420/1500-2500
16 Rear axle ratio 3.9 3.9
17 Maximum speed (km/h) ≥150km/h ≥150km/h
18 Gearbox type 8AT  8AT
19 Fuel tank capacity (L) 80L 80L
20 Emission China VI Stage B China VI Stage B
  ■ Brakes, Suspension & Drive System
21 Braking system (front/rear) Disc/Disc Disc/Disc
22 Suspension system (front/rear) Double Wishbone Independent Suspension/Leaf Spring Rigid Axle Suspension Double Wishbone Independent Suspension/Leaf Spring Rigid Axle Suspension
23 Power steering type Hydraulic Steering Hydraulic Steering
24 Drive type 2WD 4WD
  ■ Exterior
25  Aluminum Alloy Wheels ● ●
26   Full size spare wheel (steel) ●18-inch tires ●18-inch tires
27  Electric folding exterior mirrors ● ●
28   Fixed side steps ● ●
29   External rope hook ● ●
   ■ Interior
30   Interior color ●（Black / Black） ●（Black / Black）
31   Full LCD instrument ● ●
32   ■ Safety
33   Front disc rear disc brake ● ●
34   All-metal non-load-bearing body ● ●
35  LED headlights ● ●
36   Front three-point seat belts ● ●
37   Driver Front Airbag ● ●
38   Vehicle stability control (ESC/ESP) ● ●
39   Traction Control (TCS/ASR) ● ●
40   Brake assist (EBA/BAS/BA) ● ●
41  Hill start assist ● ●
42 EPB Electronic Parking Brake ● ●
  ■ Seats
43  Leather fabric seat (with perforation) ●  ●
44  Six-way electric adjustment for the driver's seat (front and rear, height and backrest angle) ●  ●
45  Four-way manual adjustment for the co-pilot seat (front and rear, backrest angle) ●  ●
  ■ Controls / Operating Controls
46   Hydraulic power steering ●  ●
47  Cruise control ●  ●
48  Electric air conditioner ● ●
49  Auto Hold ● ●
  ■ Multimedia / Infotainment
50  15.6 inch Central control floating large screen ● ●
51 language Chinese / Turkish Chinese / Turkish
52  360° 3D panoramic image ● ●
53  GPS Navigation System - -
54 Mobile phone interconnection (Carplay & Android auto) (wired + wireless) ●（Carplay、Android auto） ●（Carplay、Android auto）
55 Speaker 4 pieces 6 pieces

                               Note: ● is standard; O is optional
