Vehicle Overview
Product Highlights
Product Configuration

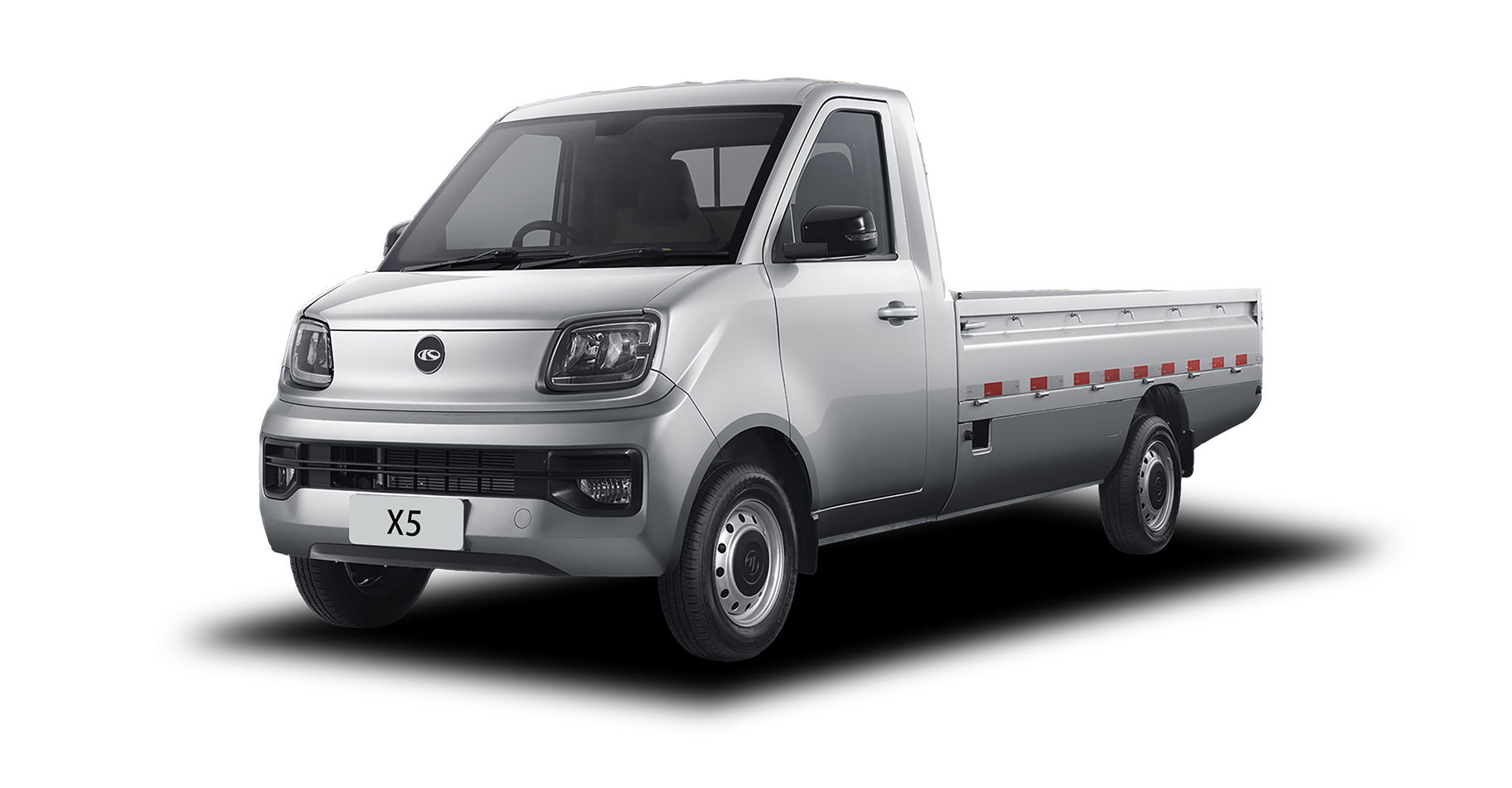

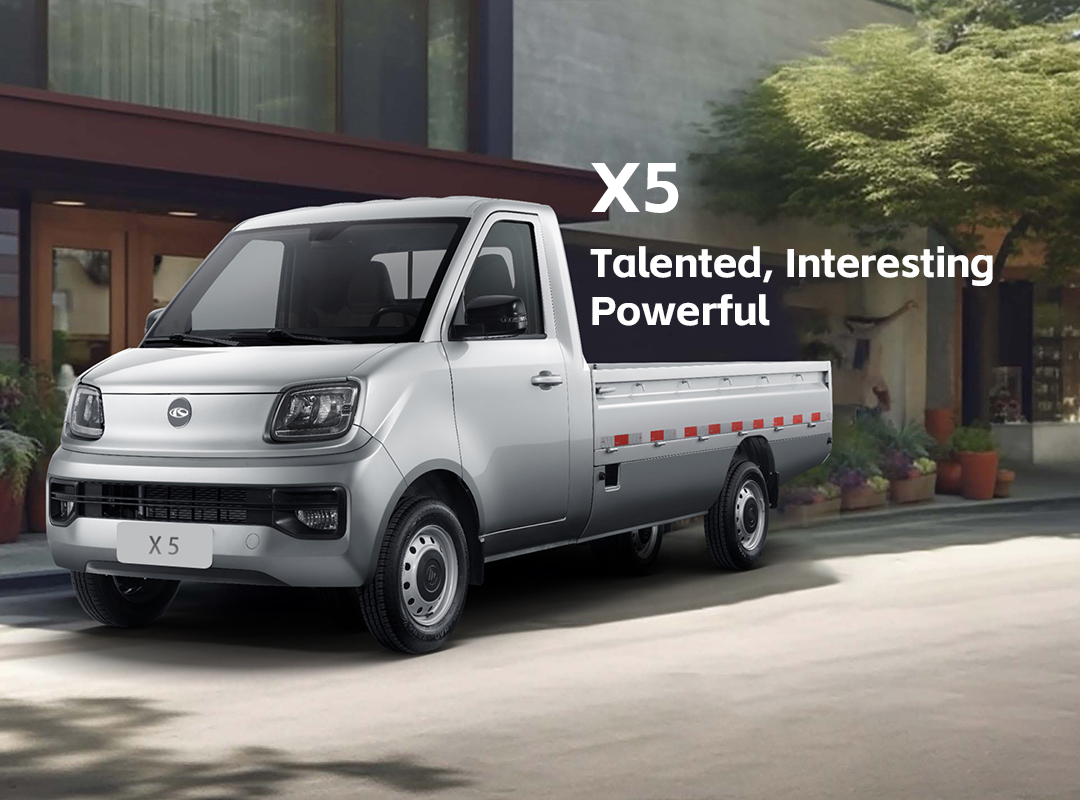

X5

Appreciation

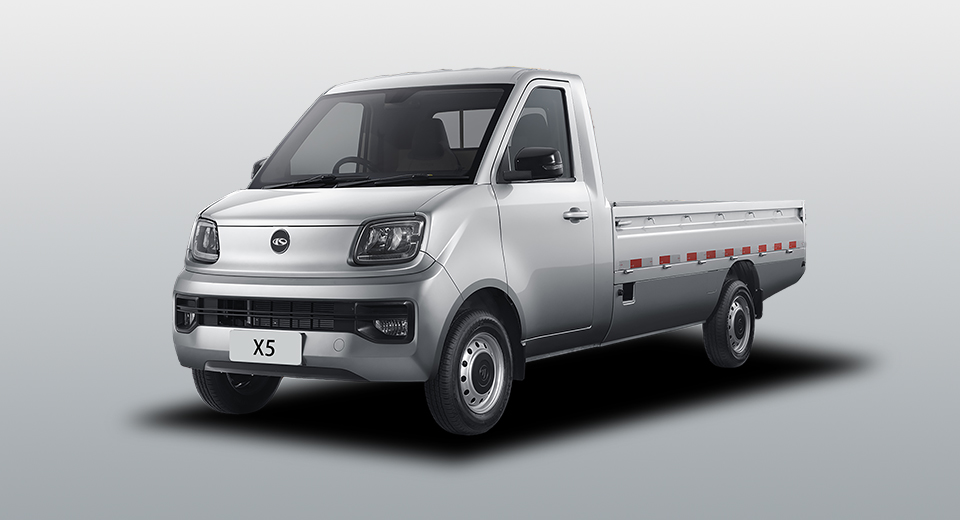

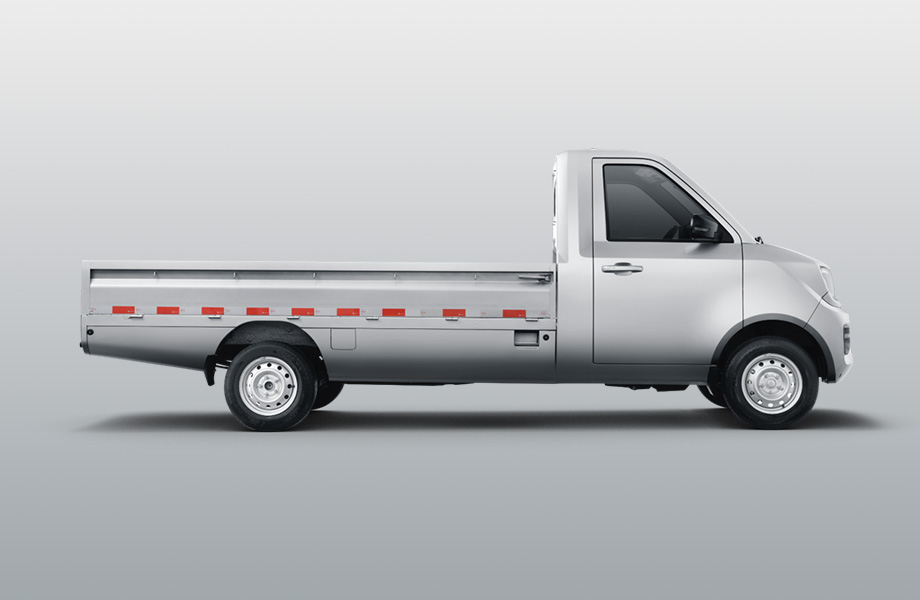

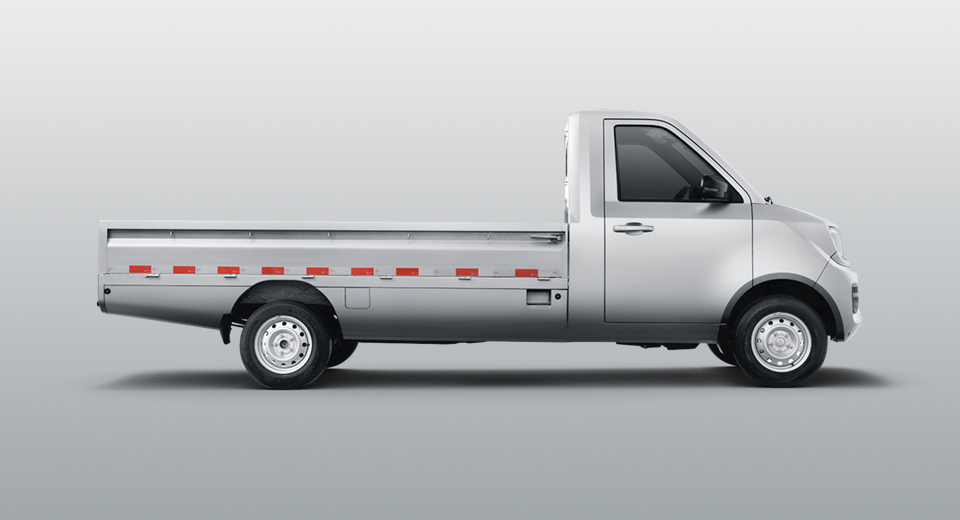

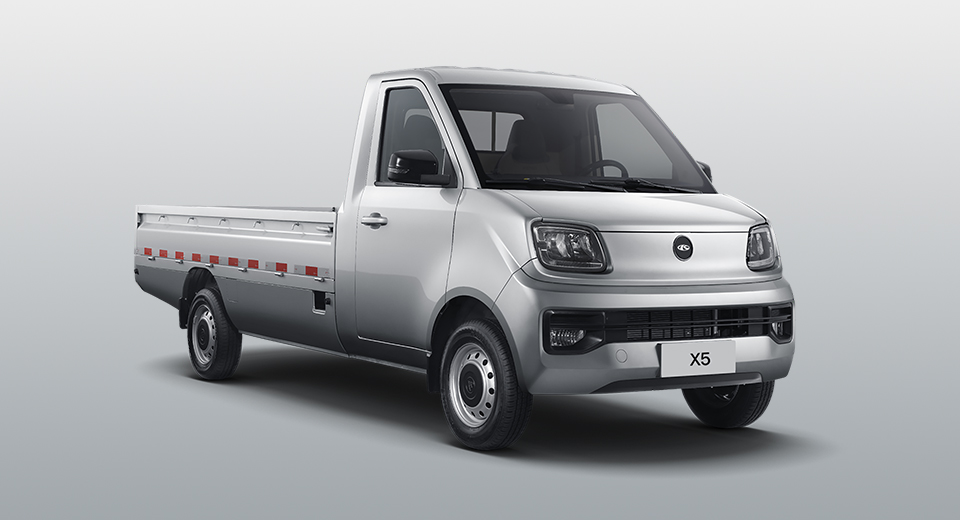

Vehicle Overview
Length(mm)
4870
Width(mm)
1710
Height(mm)
1980
Wheelbase(mm)
3080
  • Crescent Silver
Product Highlights
Comfortable

· Multi functional steering wheel

· Intelligent cockpit with large space

· One key start, keyless entry

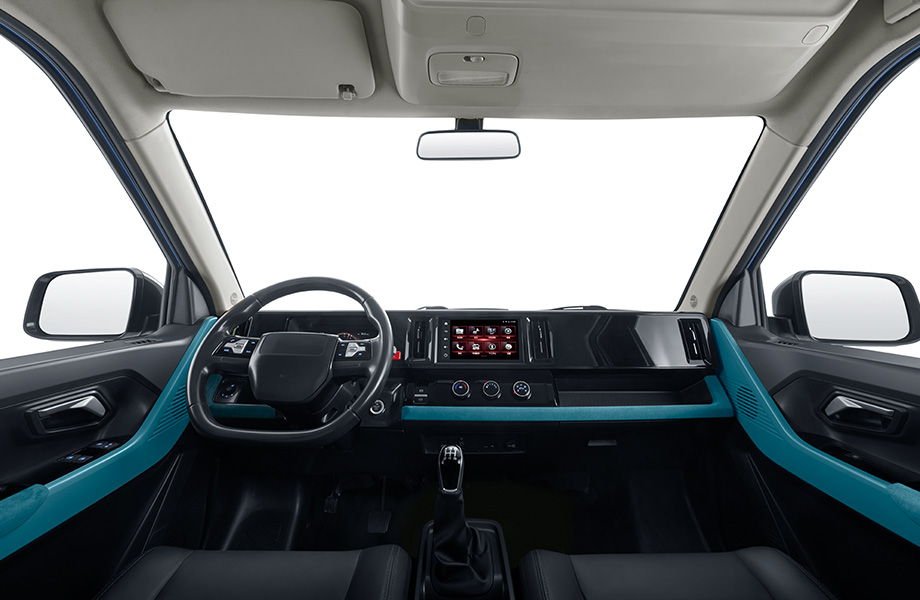

· 7-inch color screen instrument integrated center console



Economical and Practical

· Efficient power

· By performance

· Container design (gantry, container steps)

· Storage applications in different industries



Product Configuration
X5 Model Configuration Table
New Energy Pure Electric O
1 Length x Width x Height (mm) 4870×1710×1980
2 Interior Dimensions Of The Cargo Compartment (mm) 2850×1570×360
3 Curb weight (kg) 1175
4 Wheelbase (mm) 3080
5 Engine Type LJM13BC
6 Displacement (L) 1.298
7 Maximum net power kW/ (r/min) 63/5600
8 Torque/speed（r/min） 113/(4400～4800)
9 Post-Processing Technical Route TWC+GPF
10 Emission Level National VI
11 Clutch Single Dry Diaphragm Spring
12 Transmission LD513MR
13 Driving Shaft Cross Shaft Universal Joint Drive Shaft
14 Tyre 175/75R14C
15 Frame Semi-Load Bearing
16 Deflector Rack And Pinion Type
17 Brake System Front disc and back drum
18 Tank Capacity 50L
19 Electric Power Steering ●
20 Electric lifting doors and Windows + central control                     door lock +2 remote control keys (two door control) ●
21 Halogen headlight +LED turn signal +LED day light ●
22 Mechanical Air Conditioning Control Panel ●
23 ESC ●

Note: ● is standard；O is optional

X5 Model Configuration Table
New Energy Pure Electric O
1 Length x Width x Height (mm) 4870×1710×1980
2 Interior Dimensions Of The Cargo Compartment (mm) 2850×1570×360
3 Curb weight (kg) 1175
4 Wheelbase (mm) 3080
5 Engine Type LJM13BC
6 Displacement (L) 1.298
7 Maximum net power kW/ (r/min) 63/5600
8 Torque/speed（r/min） 113/(4400～4800)
9 Post-Processing Technical Route TWC+GPF
10 Emission Level National VI
11 Clutch Single Dry Diaphragm Spring
12 Transmission LD513MR
13 Driving Shaft Cross Shaft Universal Joint Drive Shaft
14 Tyre 175/75R14C
15 Frame Semi-Load Bearing
16 Deflector Rack And Pinion Type
17 Brake System Front disc and back drum
18 Tank Capacity 50L
19 Electric Power Steering ●
20 Electric lifting doors and Windows + central control                     door lock +2 remote control keys (two door control) ●
21 Halogen headlight +LED turn signal +LED day light ●
22 Mechanical Air Conditioning Control Panel ●
23 ESC ●

Note: ● is standard；O is optional
