X6_ANHUI CORONET TECH.CO.，LTD.

Appreciation

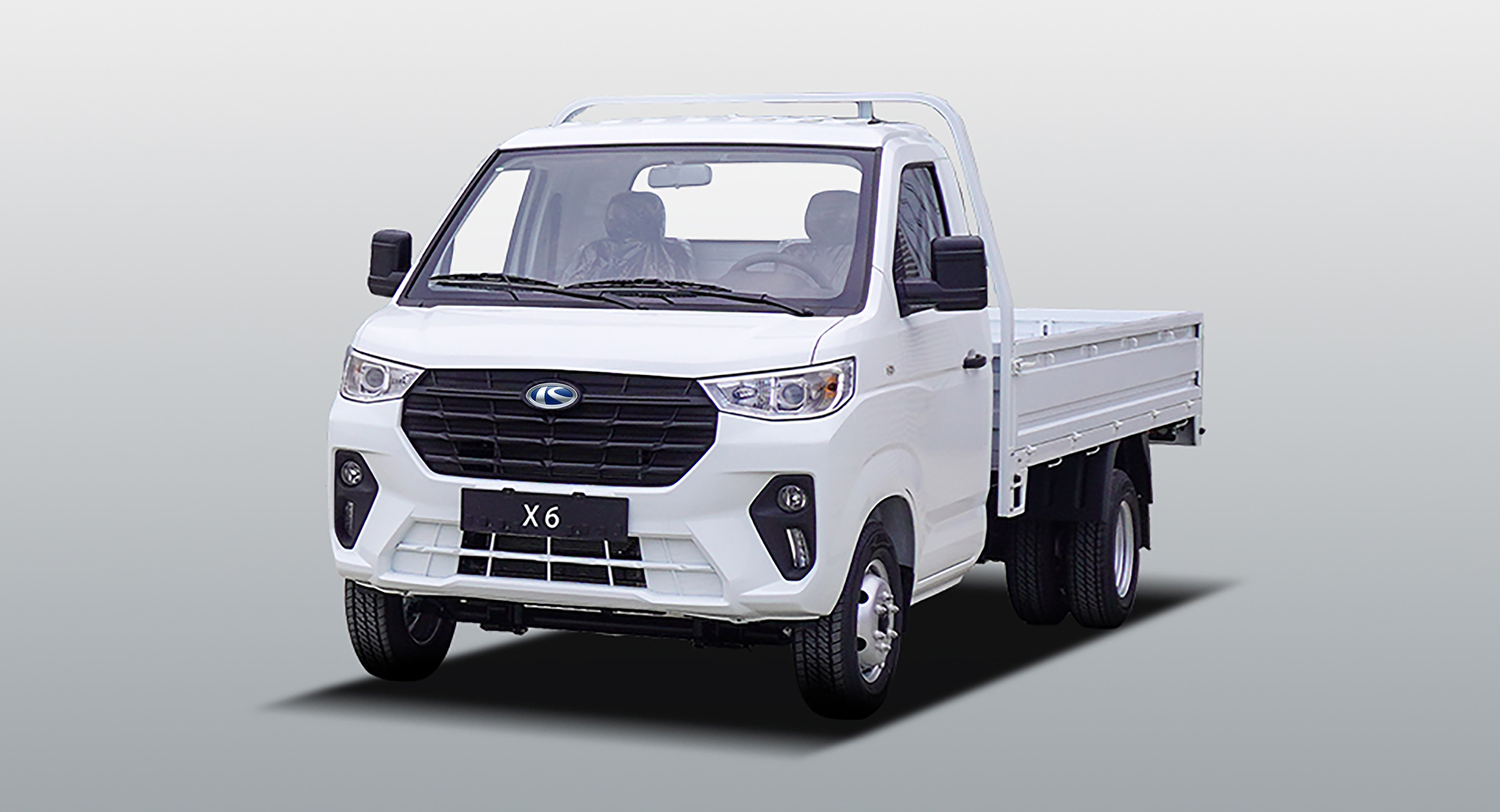

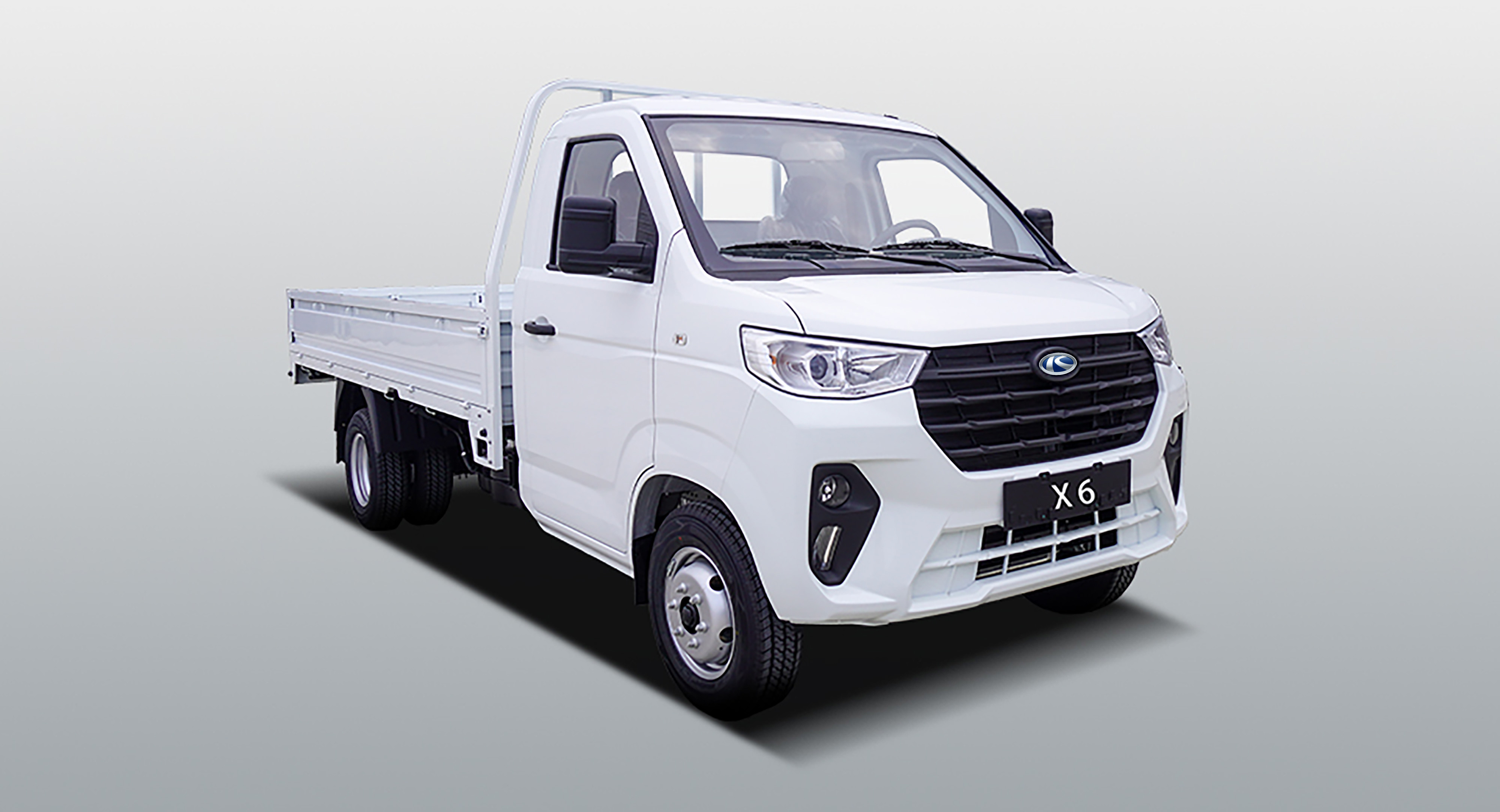

Vehicle Overview

Length(mm)

5555

Width(mm)

1830

Height(mm)

2055

Wheelbase(mm)

3400

Moon White

Product Highlights

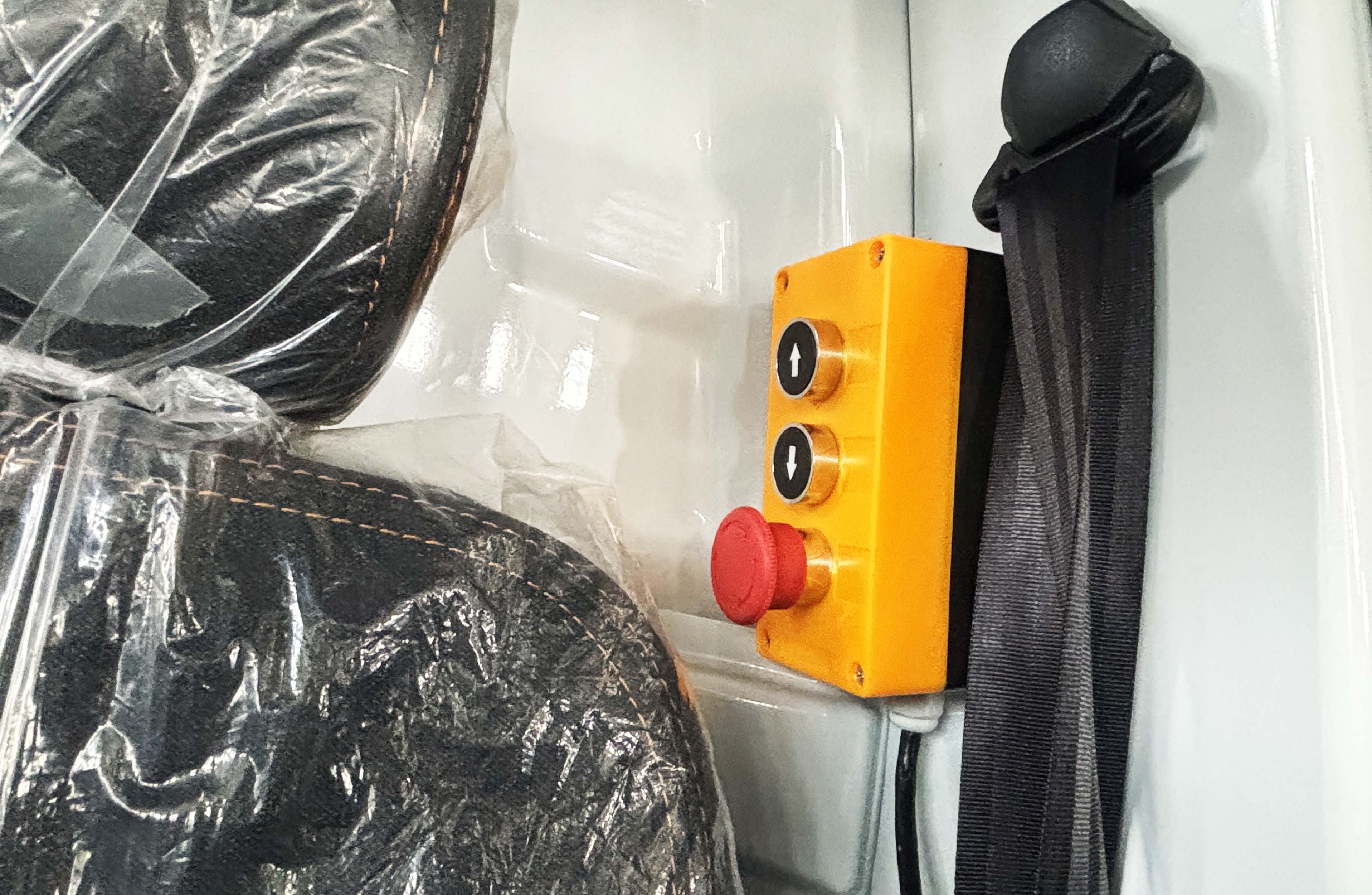

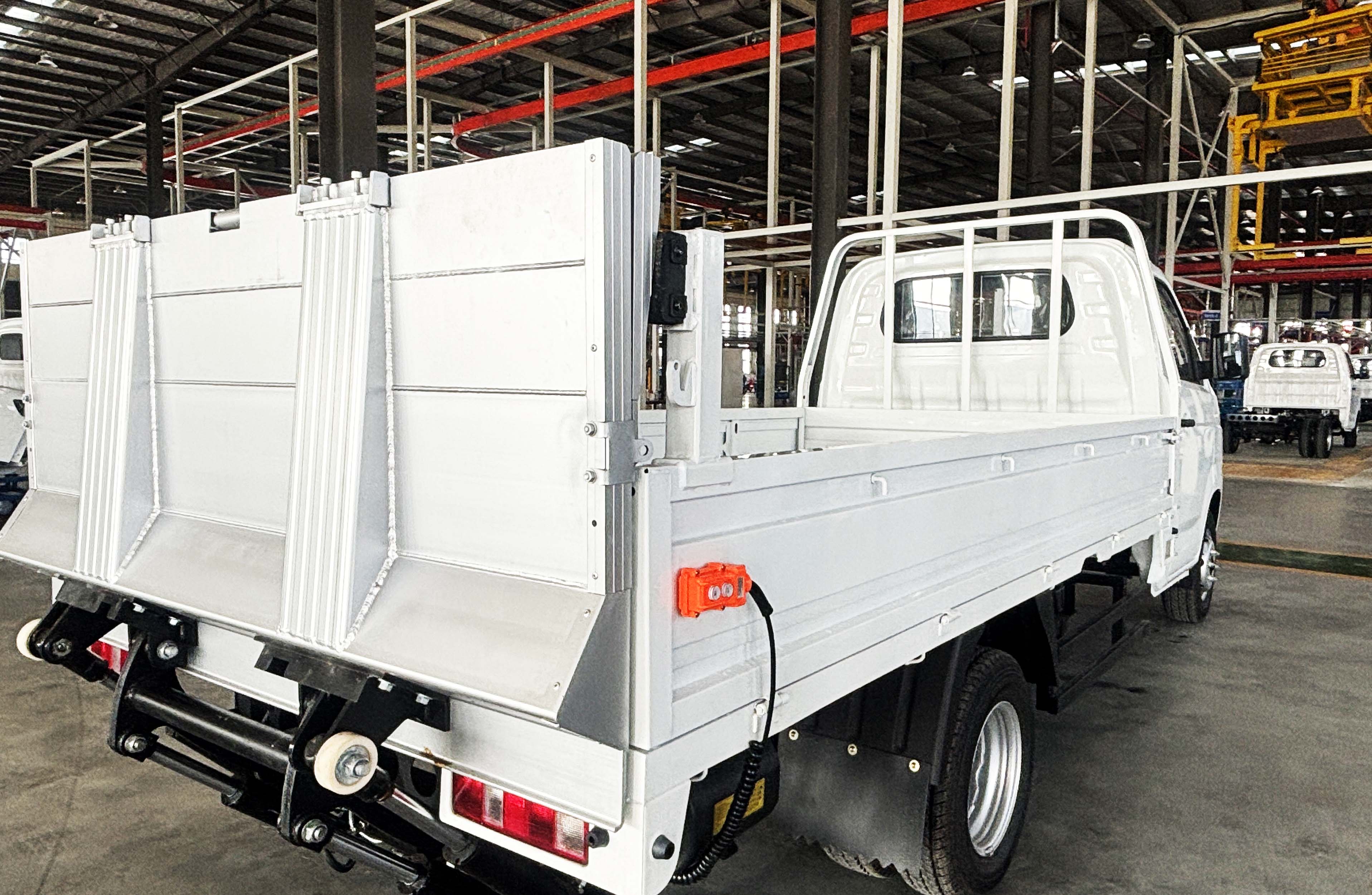

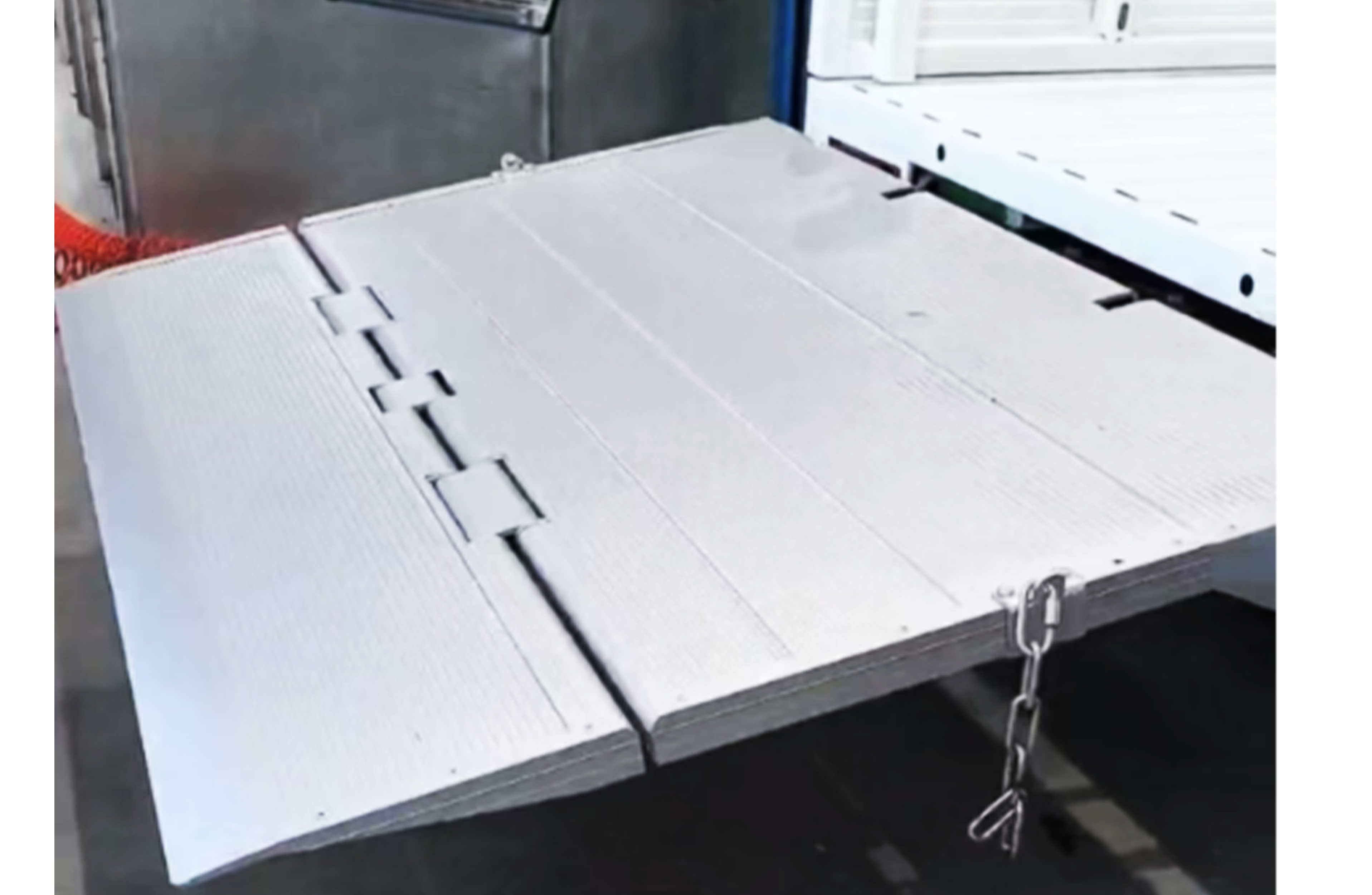

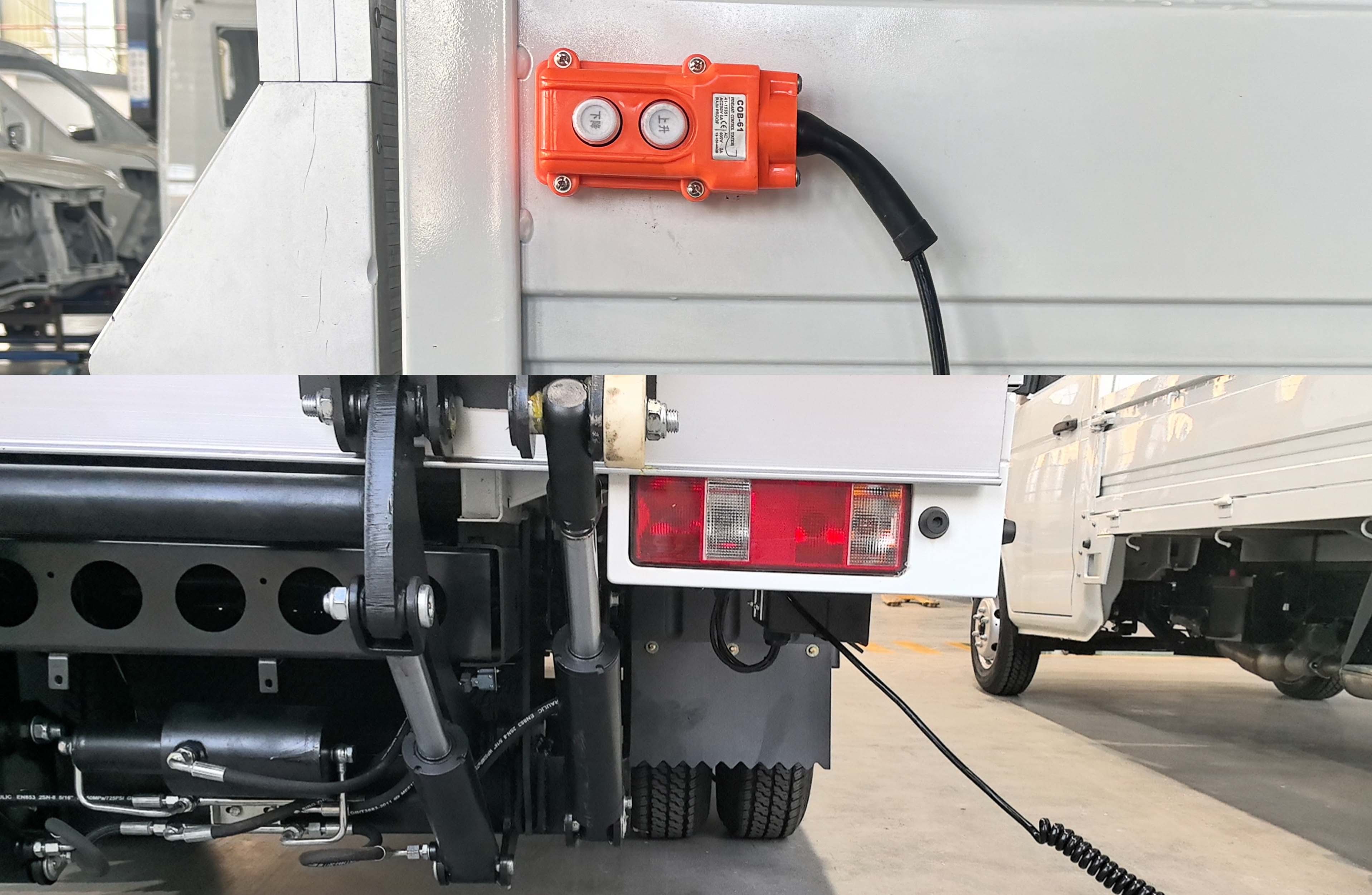

Remote control rear platform device

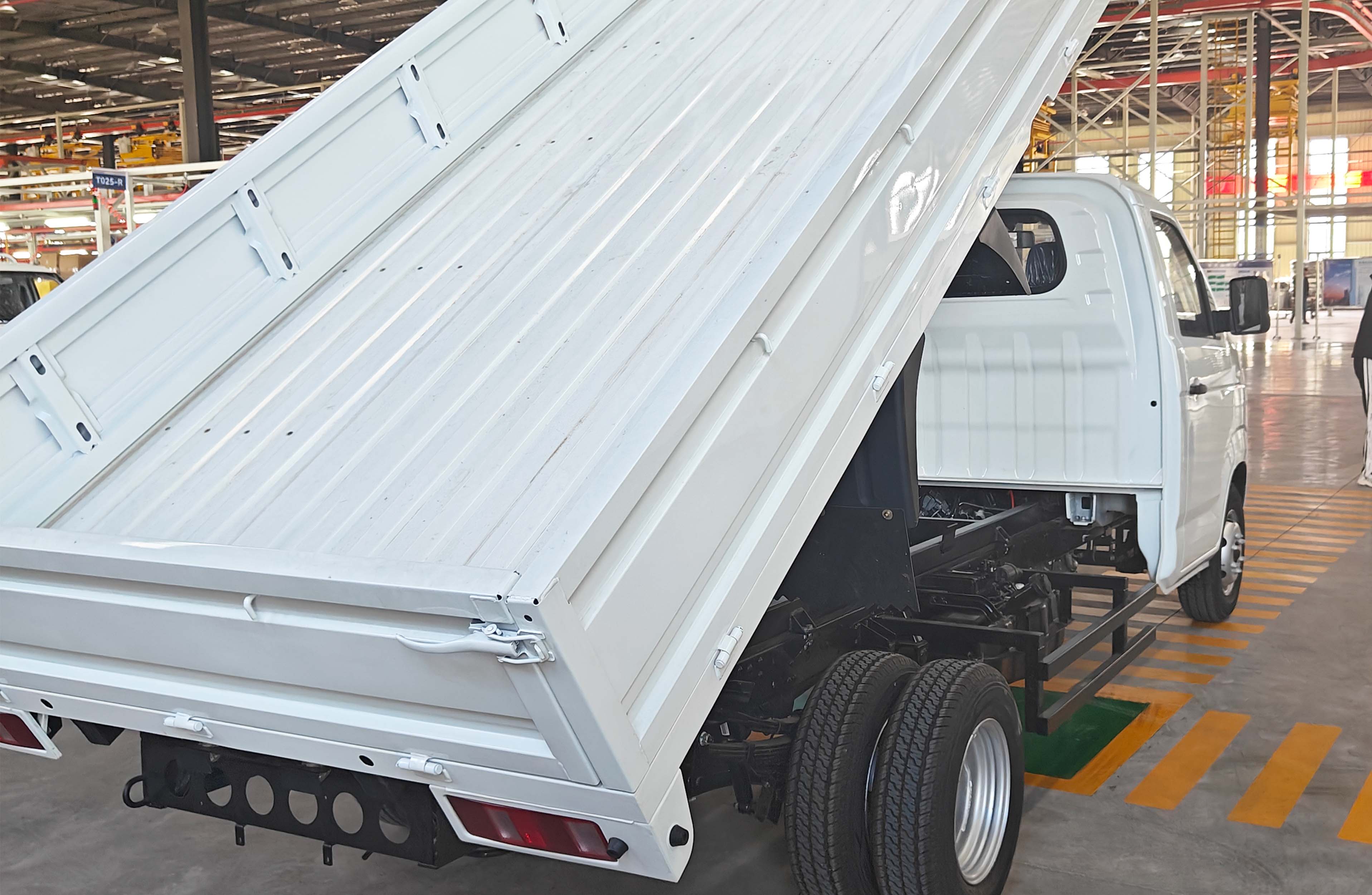

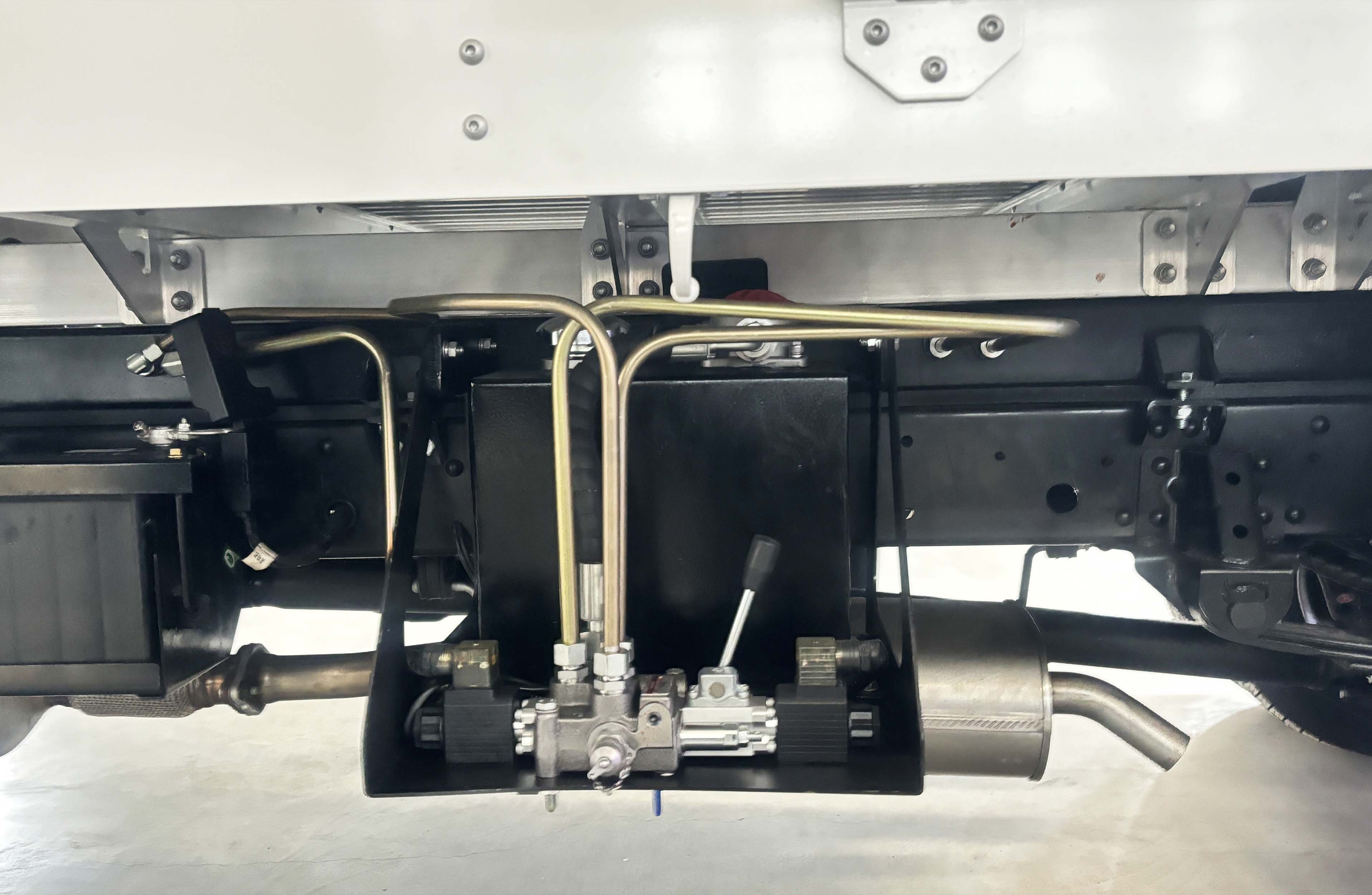

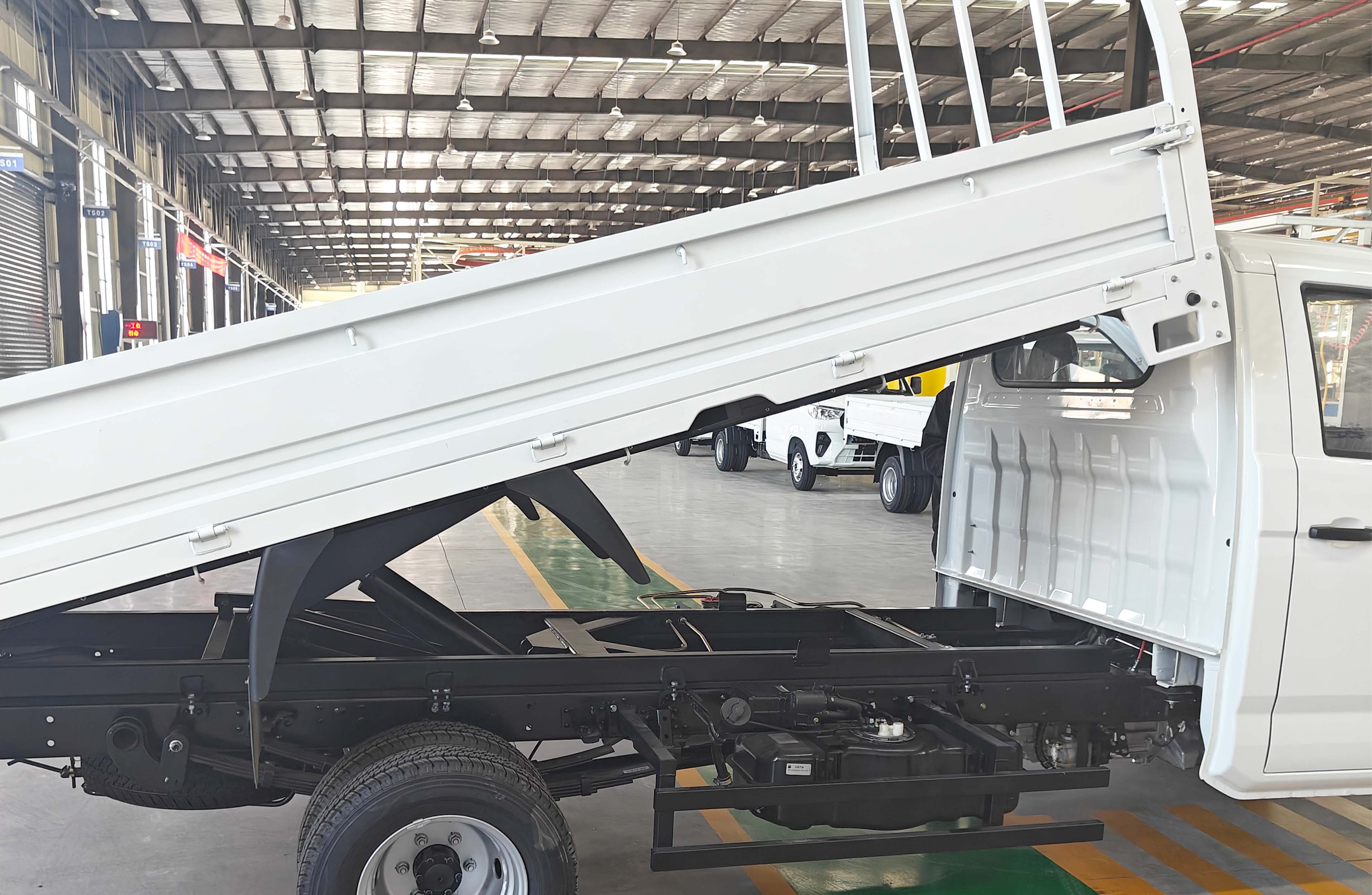

Remote control dump device

Can be modified

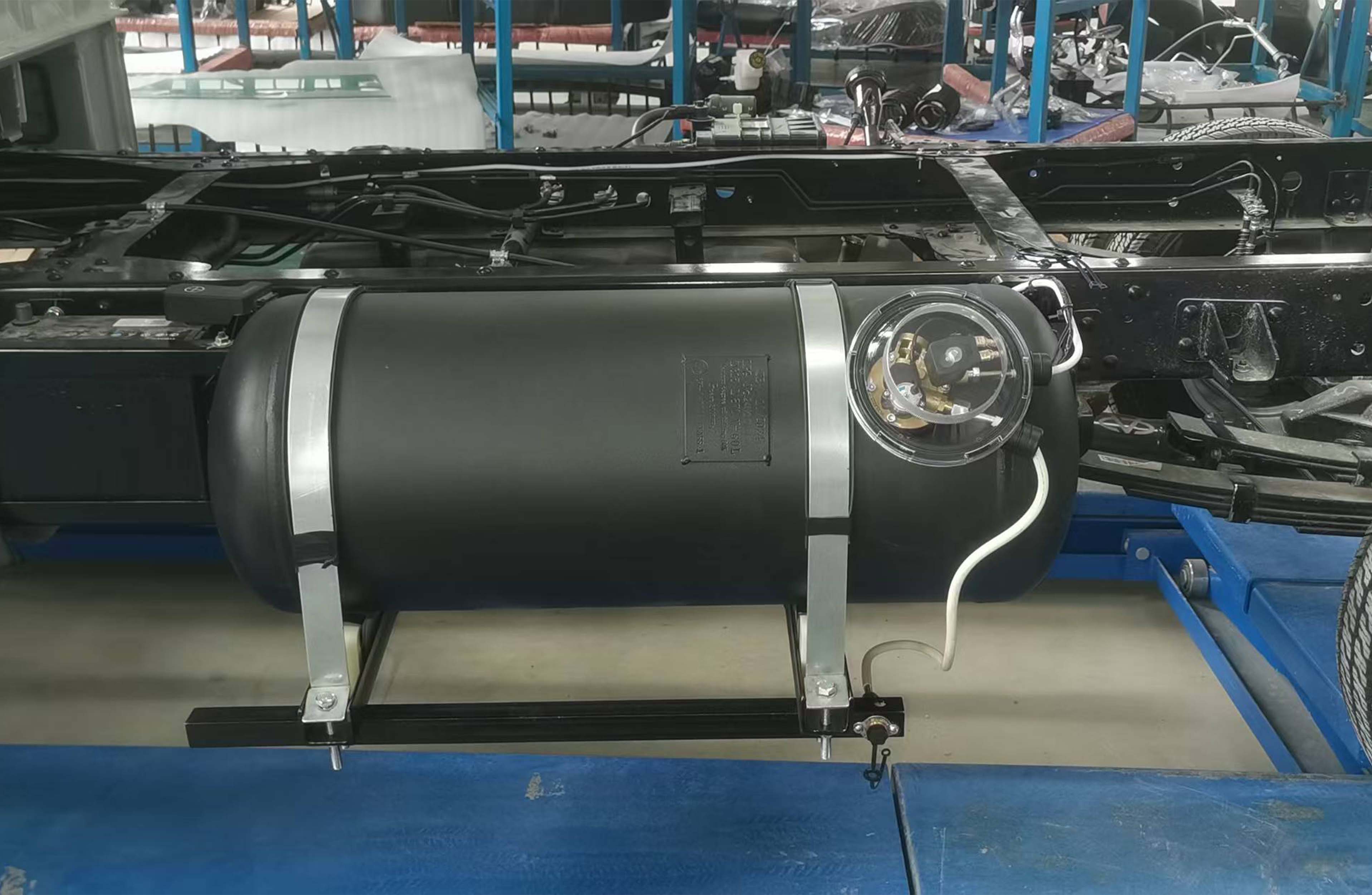

With LPG

Reliable power

·1.6L high-power DAM engine, with a maximum torque of 90kw/158N·m.

·High quality suppliers in the industry, ensuring product quality, and conducting reliable road tests for the entire 80000 km vehicle.

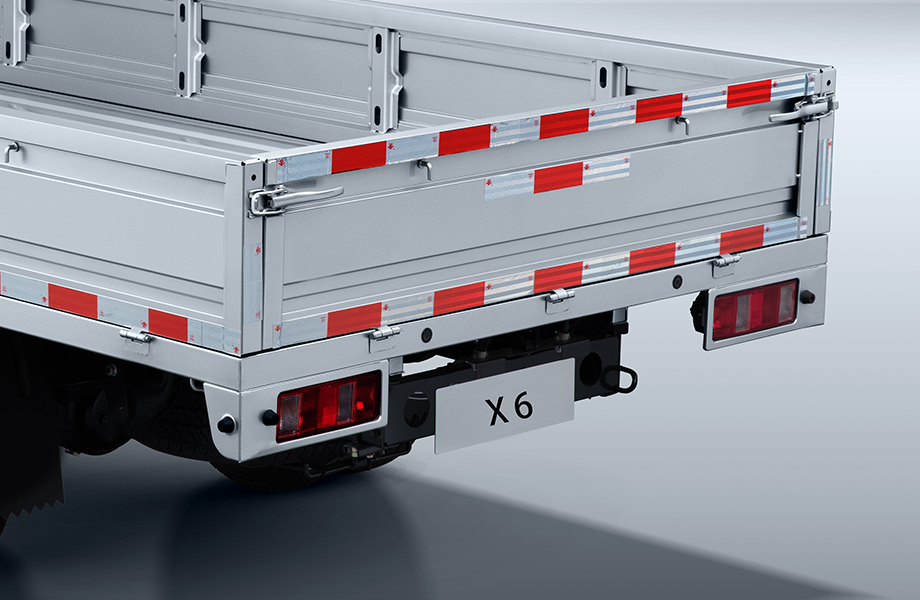

Large Cargo Box

· 3400mm container length, 10% more than competing products in the same class.

· Double longitudinal beam and nine transverse beam structure, excellent load-bearing capacity of 2.5-ton rear axle, high load-bearing capacity.

Product Configuration

X6 Single Row Rear Twin Model Configuration Table
1	Lenght×width×height (mm)	555518302055
2	Truck body gate inside dimension (lenght × width × height) (mm)	34001730380
3	Wheel base (mm)	3400
4	Track (front/rear) (mm)	1480/1390
5	Minimum ground clearance (mm)	173
6	Minimun turning radius (m)	6.9
7	Curb weight (kg)	1460
8	Total mass (kg)	3495
9	Rated load weight (kg)	1905

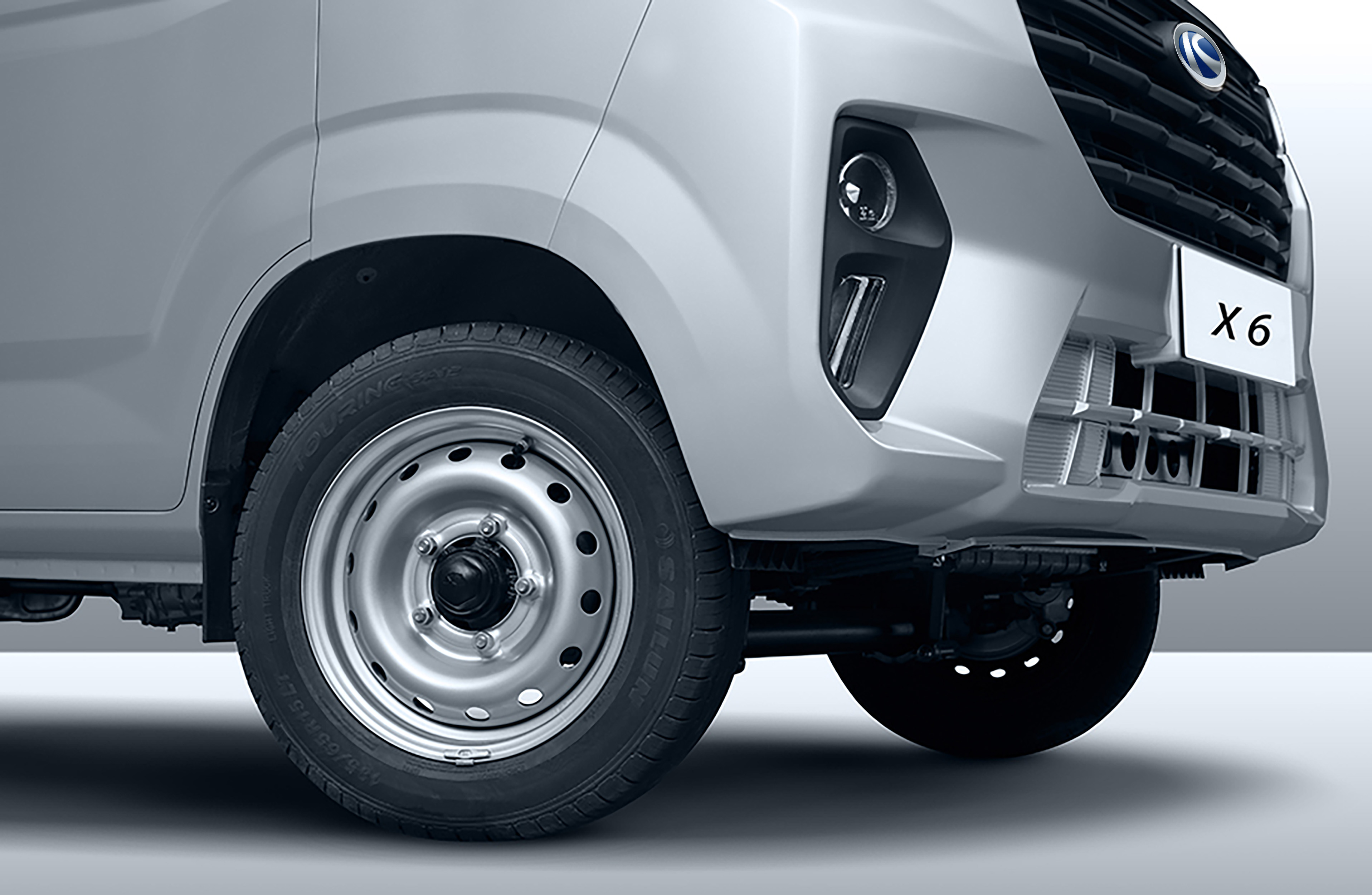

10	Tire specification	185R14LT
11	Number of seats	2
12	Engine model	DAM16KR
13	Engine type	Inline four cylinder, DOHC
14	Engine dispalcement (cc)	1597
15	Maximum net power (kw/rpm)	85/6000
16	Horse power	115.6
17	Maximum net torque (N.m/rpm)	152/4800
18	Compression ratio	11.5：1
19	Transmission speed ratio	1st gear：4.04
20	Final ratio	5.375
21	Maximum speed (km/h)	100km/h
22	Transmission type	5MT
23	Fuel tank capacity (L)	50L
24	Emission standard	National VI-B
25	Type of brake system (front/rear)	Front disc rear drum, vacuum assistant dual-circuit brake
26	Type of suspension system (front/rear)	Front suspension: 5 leaf spring nonindependent suspension; rear suspension:, 7+4 leaf spring nonindependent suspension,
27	Wheel drive	MR
28	Roof antenna with powerful magnify	●
29	Steel wheel rim	●
30	Full size spare tire	●
31	Same color (with body) front bumper (with improved front lower grille)	●
32	Black (with body) front bumper	●
33	Black color outside rearview mirror	●
34	Inside rearview mirror	●
35	Black outside door handle	●
36	Manual outside rearview mirror	●
37	Black inside door handle	●
38	Sun visor for front driver seat	●
39	Sun visor for front passenger seat	●
40	Safety assist grip for front passenger	●
41	Driving air conditioning air outlet cup holder function	●
42	Code break type pointer meter	●
43	Reading light	●
44	PVC carpet	●
45	Stand by power	●
46	Front disc brake and rear drum brake	●
47	All metal body（non-load-bearing）	●
48	High strength two door beams	●
49	Adjustable and collapsing steering column	●
50	Steering column lock	●
51	Steering column lock	●
52	Remote control folding key	●
53	Headlamp with lens function	●
54	LED daytime running lamps	●
55	Front fog lamp	●
56	Rear fog lamp	●
57	Steering auxiliary lighting	●
58	Cover rear taillights	●
59	Front row 3-point seat belt	●
60	Safety belt not fastened reminder（driver and passager）	●
61	Dual airbags for front row seat	●
62	ABS+EBD	●
63	Weaving seat (enhance seat foaming hardness)	●
64	4 way manually adjustable driver seat	●
65	All seats equipped with headrests (solid headrest)	●
66	Electronic power steering	●
67	Multi-function steering wheel	●
68	Cruise control	●
69	Warm wind	●
70	Manual warm-cold A/C	●
71	Electronic window lifter	●
72	Manual adjustable front headlight	●
73	Automatic headlights	●
74	Single tone horn	●
75	Adjustable radio	●
76	USB interface 2pcs	●
77	Speaker	2个
78	Rear platform	o
79	Dumper	o
80	LPG	o

Note: ● is standard；O is optional
