X7_ANHUI CORONET TECH.CO.，LTD.

Appreciation

Vehicle Overview

Length(mm)

5950/7403

Width(mm)

2150/2154

Height(mm)

2315/2330

Wheelbase(mm)

3300/4350

Length(mm)

5950/7403

Width(mm)

2150/2154

Height(mm)

2315/2330

Wheelbase(mm)

3300/4350

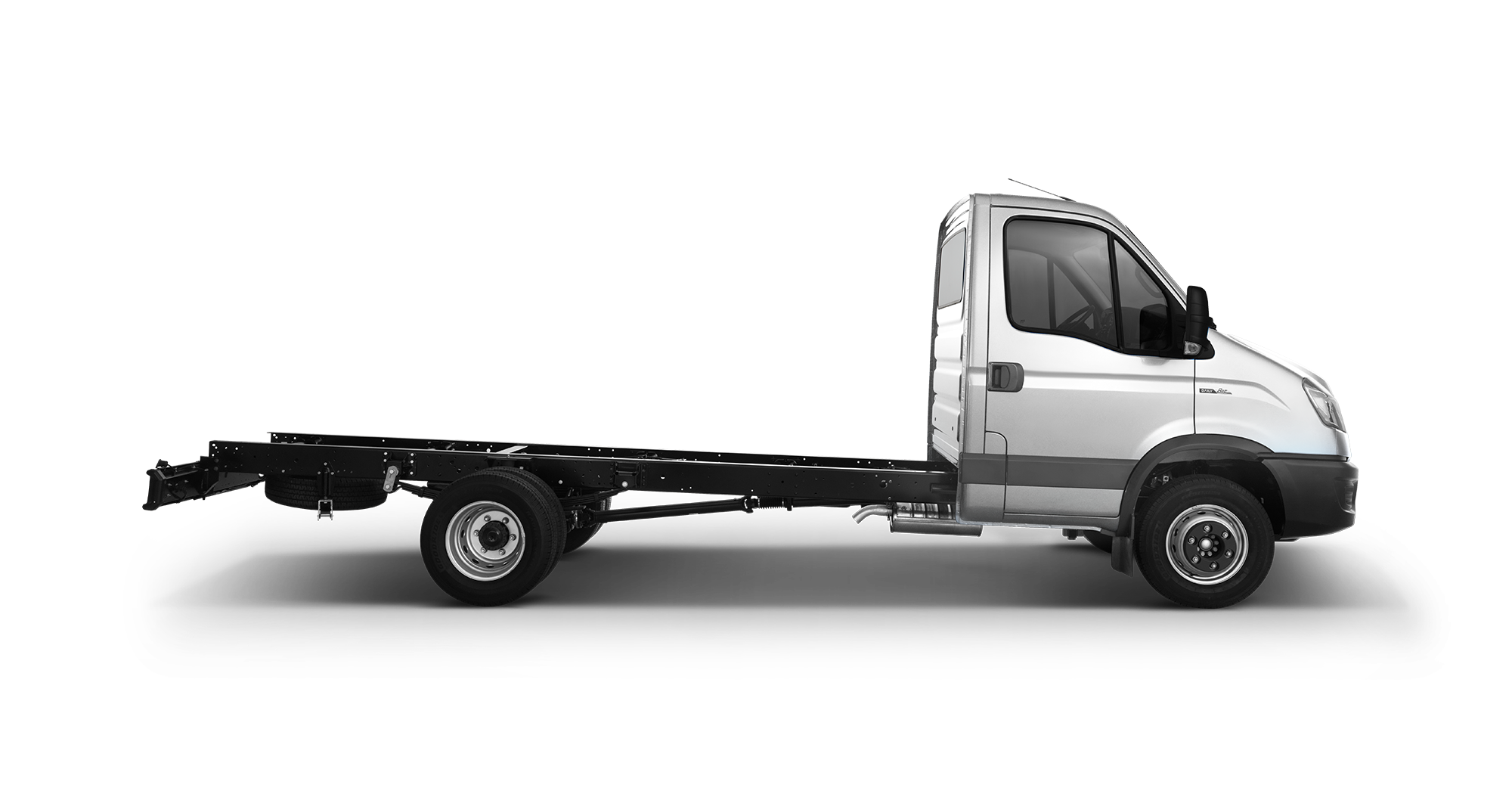

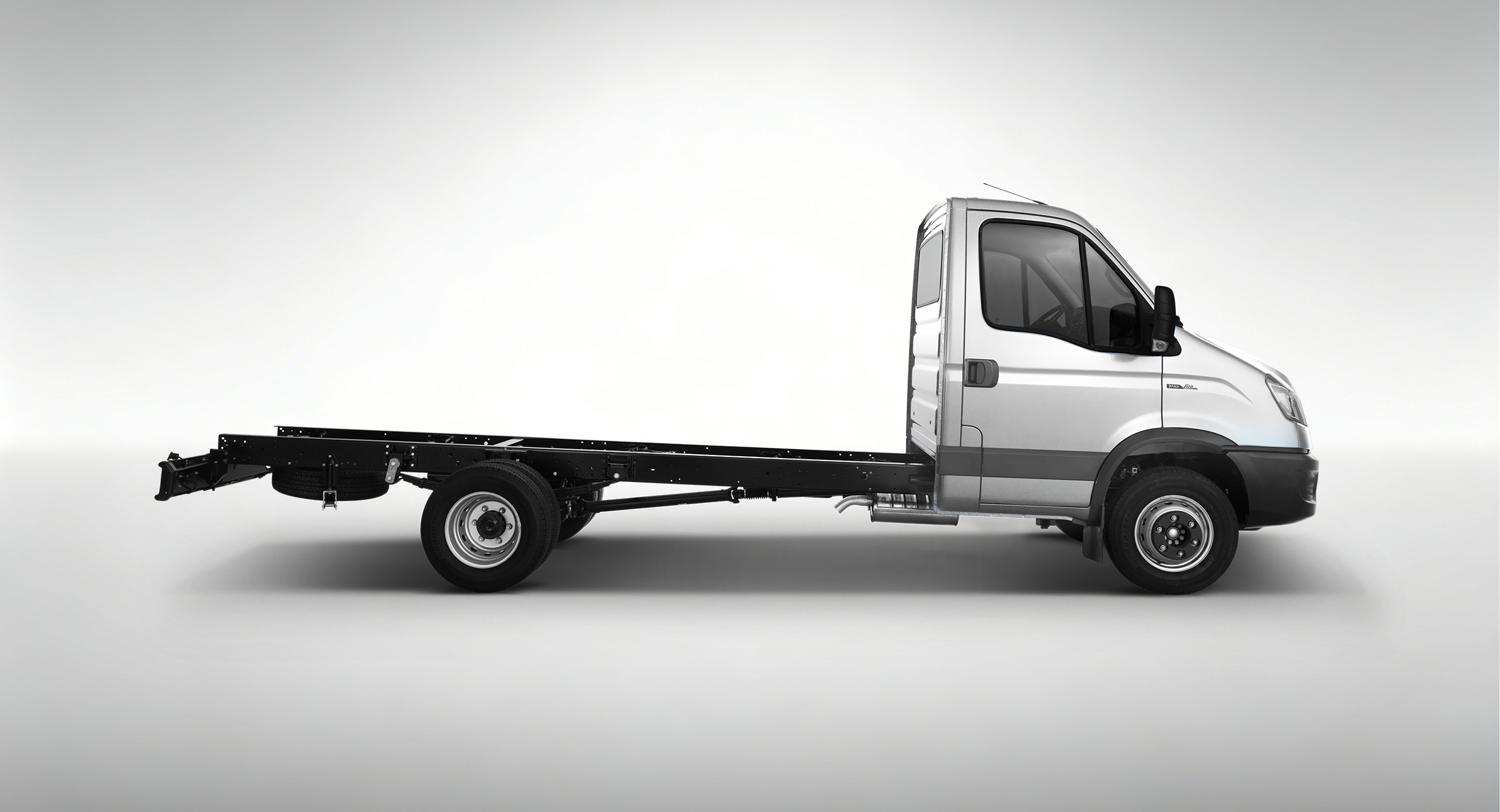

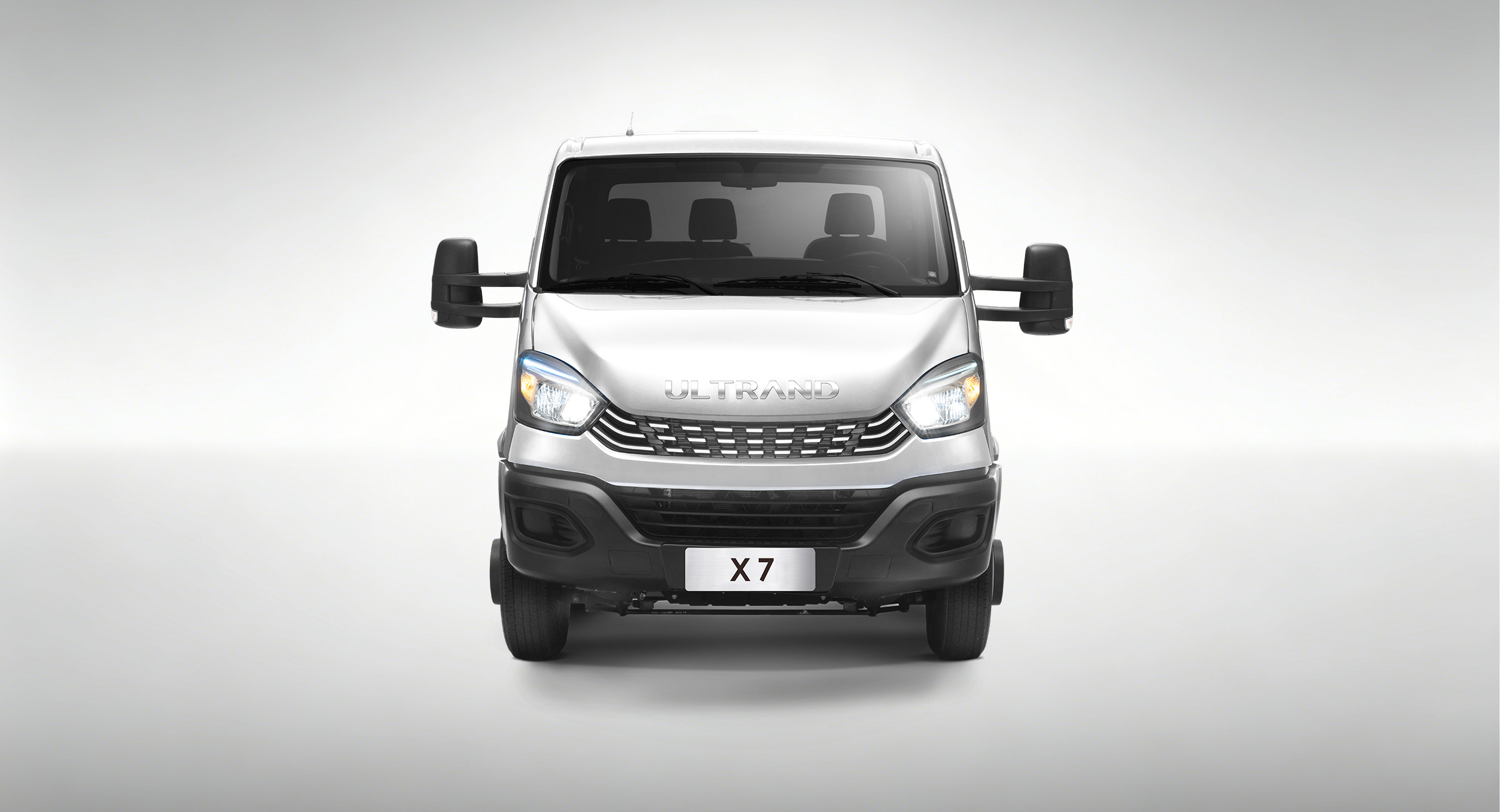

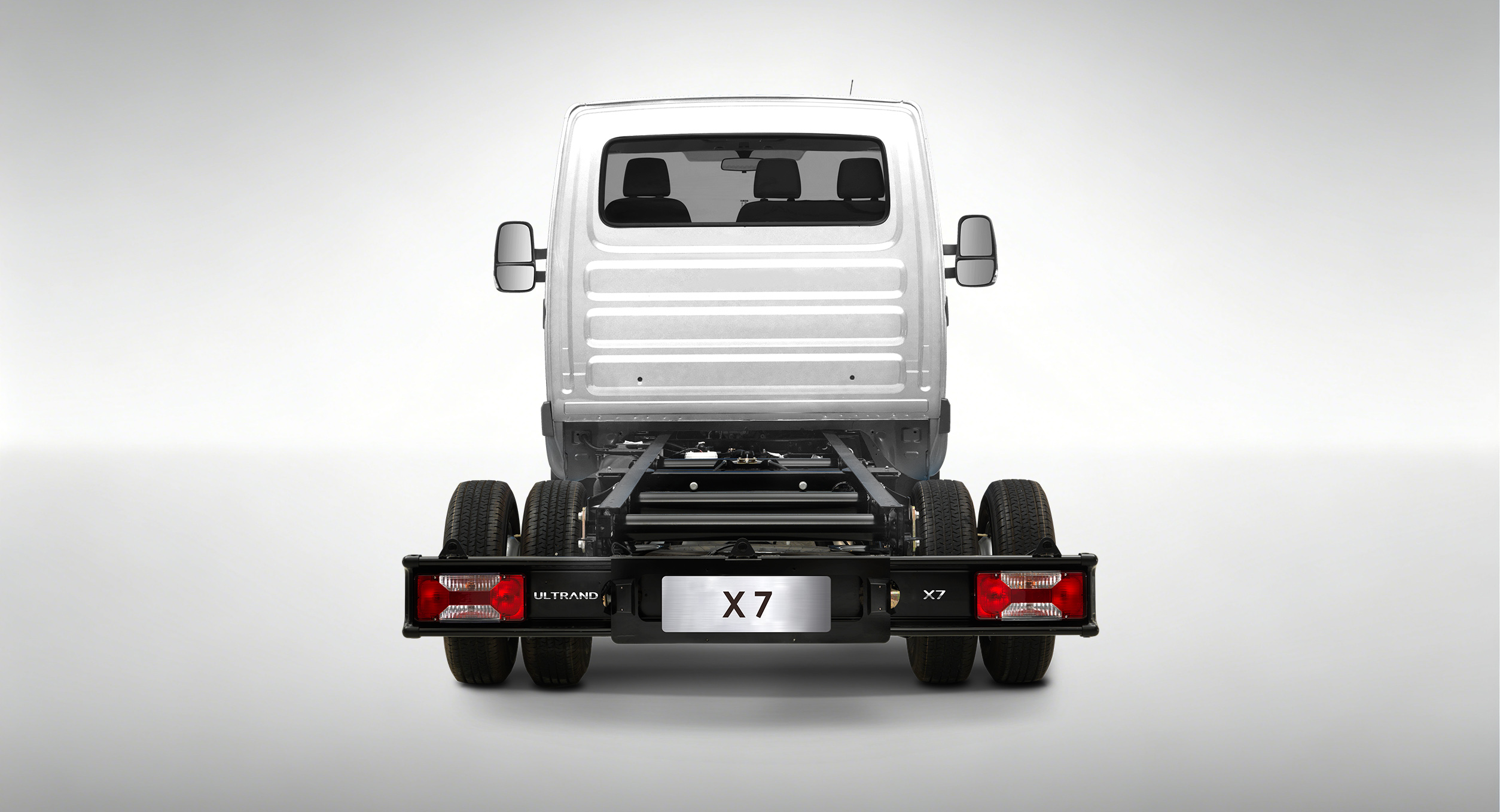

White

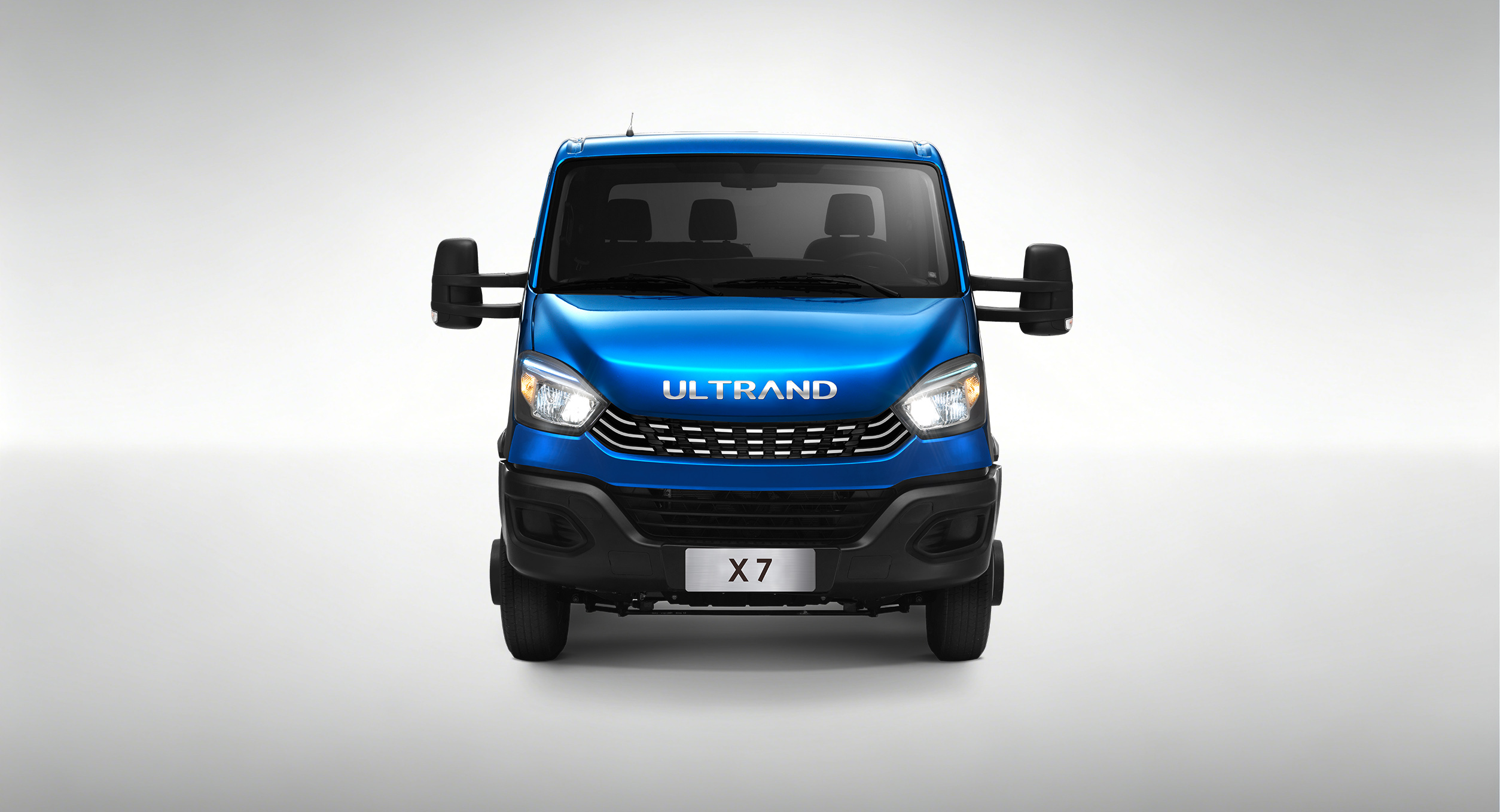

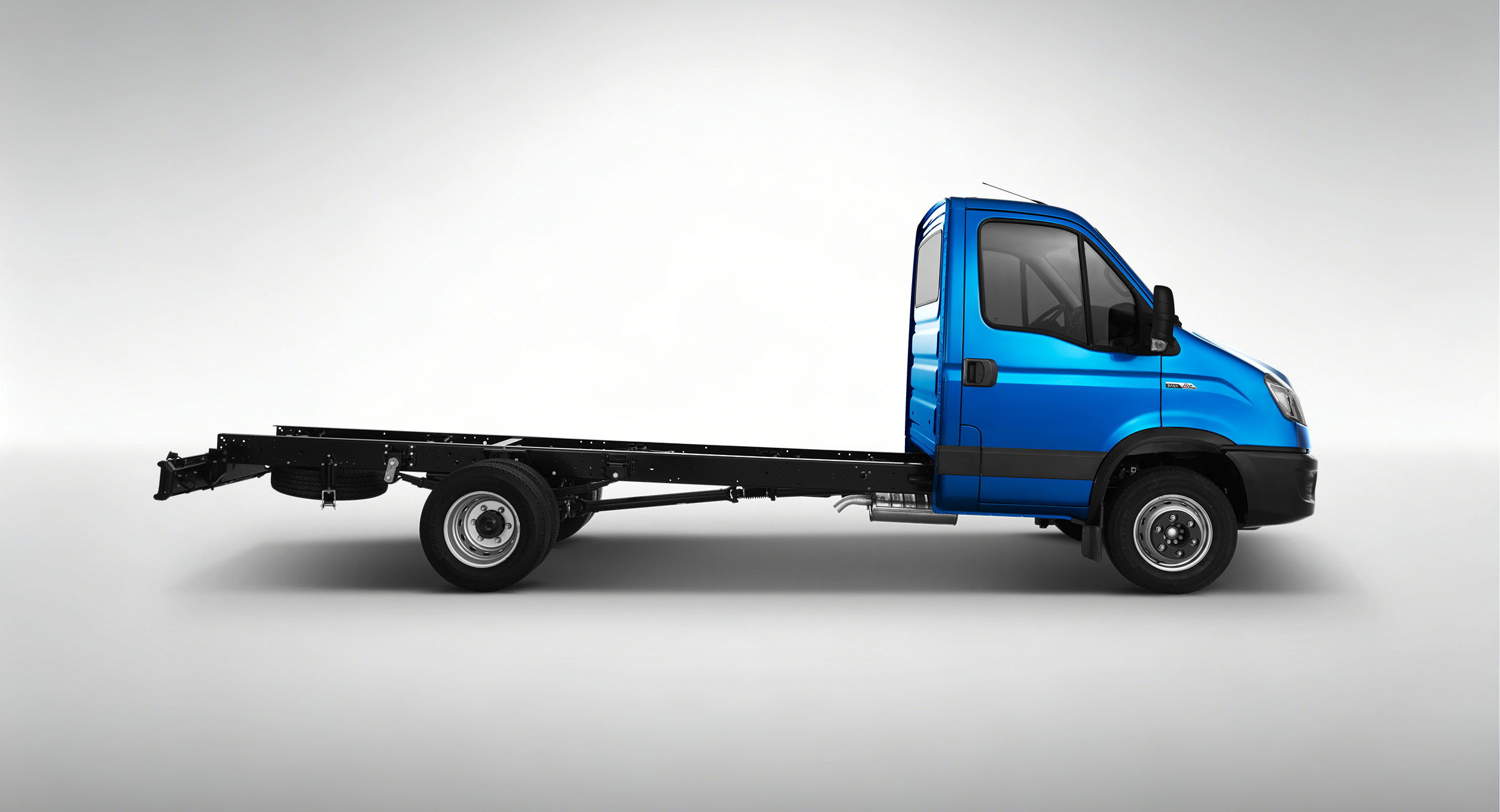

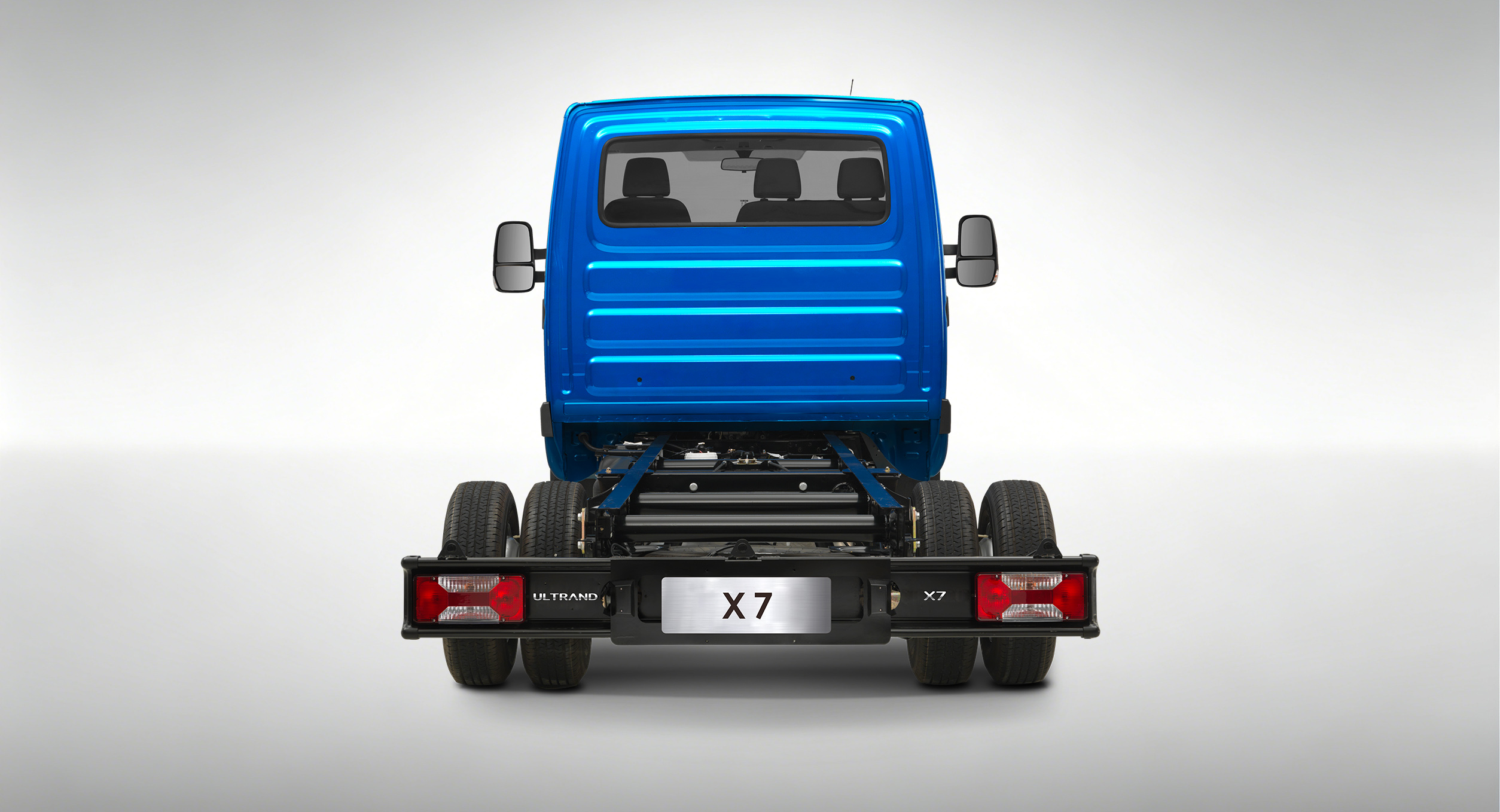

Blue

Product Highlights

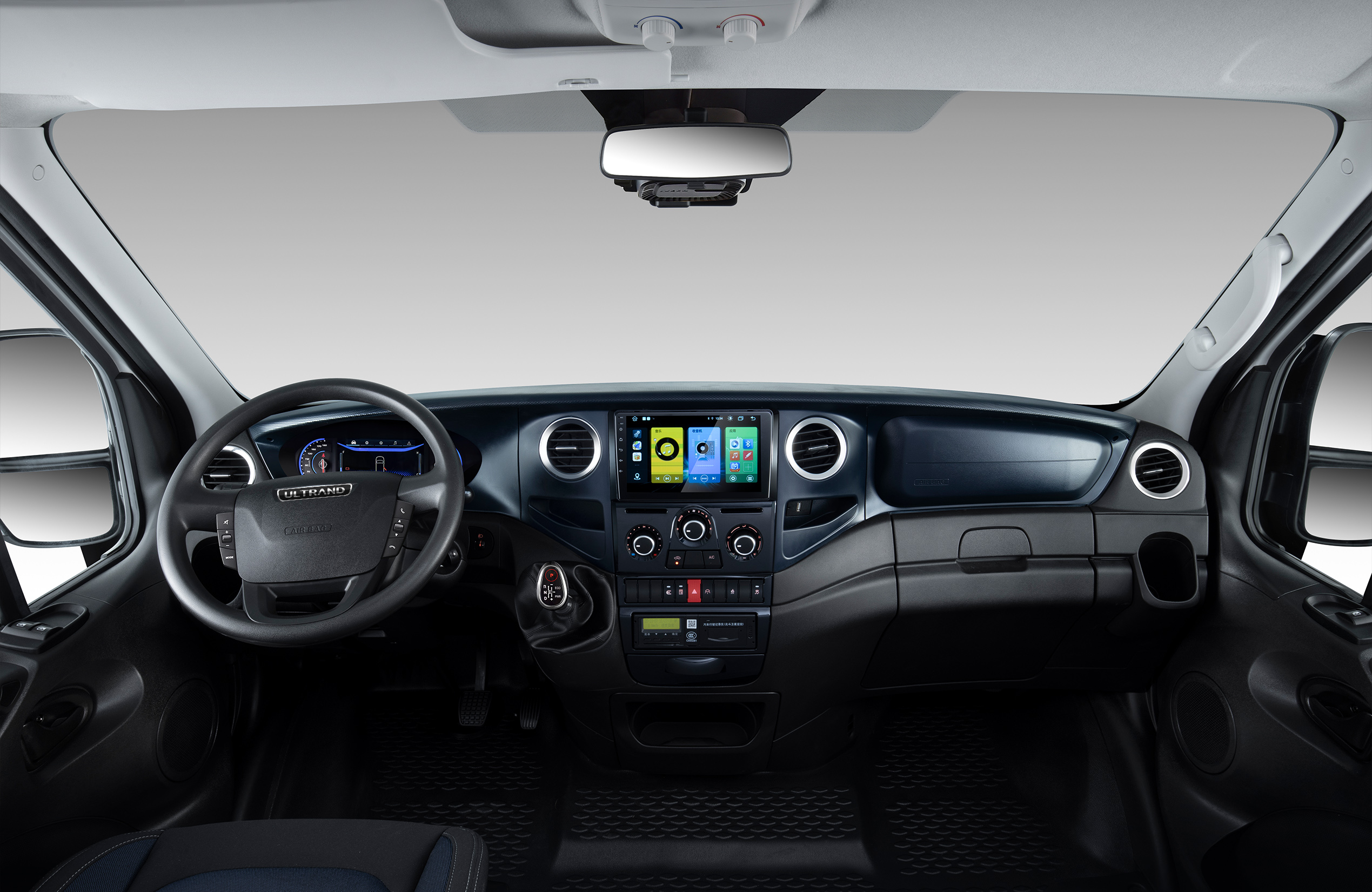

Smart Cockpit, Safety First

Smart touchscreen + full LCD digital instrument cluster.

6-way adjustable driver's seat for ultimate long-haul comfort.

Standard ESC, TPMS, and rear parking sensors.

Front and rear ventilated disc brakes ensure both safety and comfort.

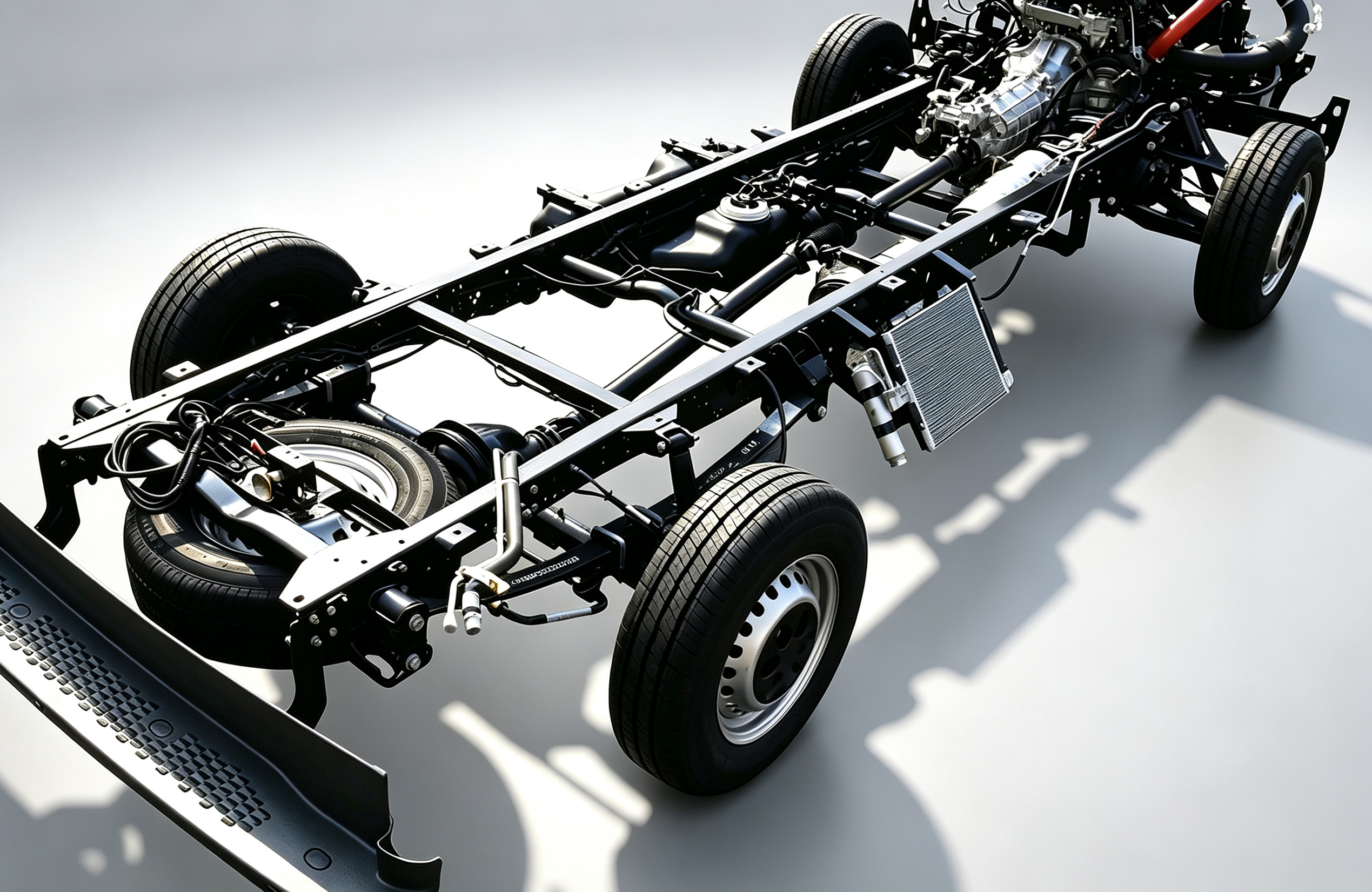

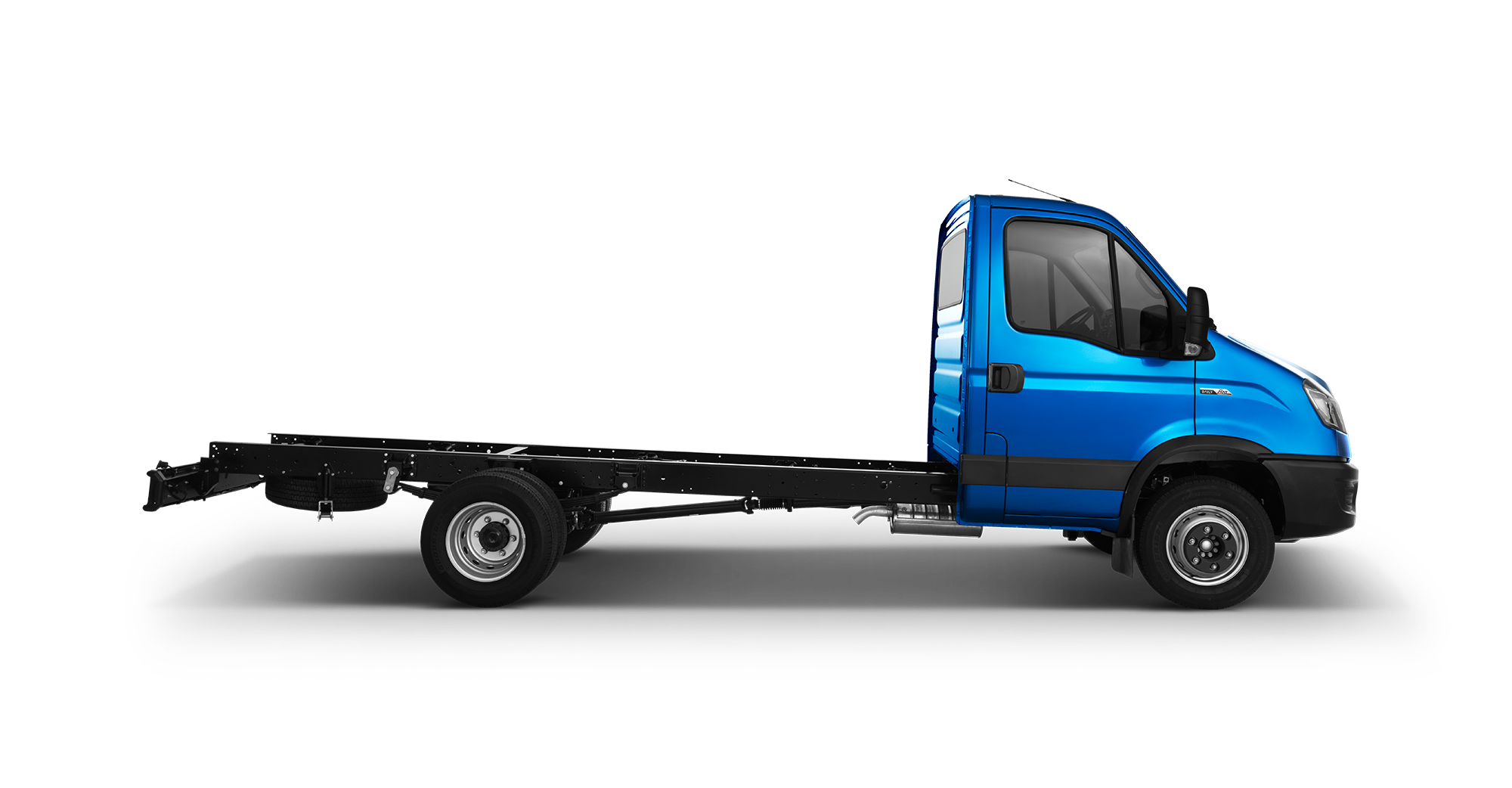

Robust Chassis, Boundless Customization

Body-on-frame construction with dual rear wheels.

Maximum GVW of up to 6,800 kg.

Available in 3300mm and 4350mm wheelbases for seamless adaptability to various upfits.

The preferred foundation for professional customization.

Powerful Performance, Smooth Efficiency

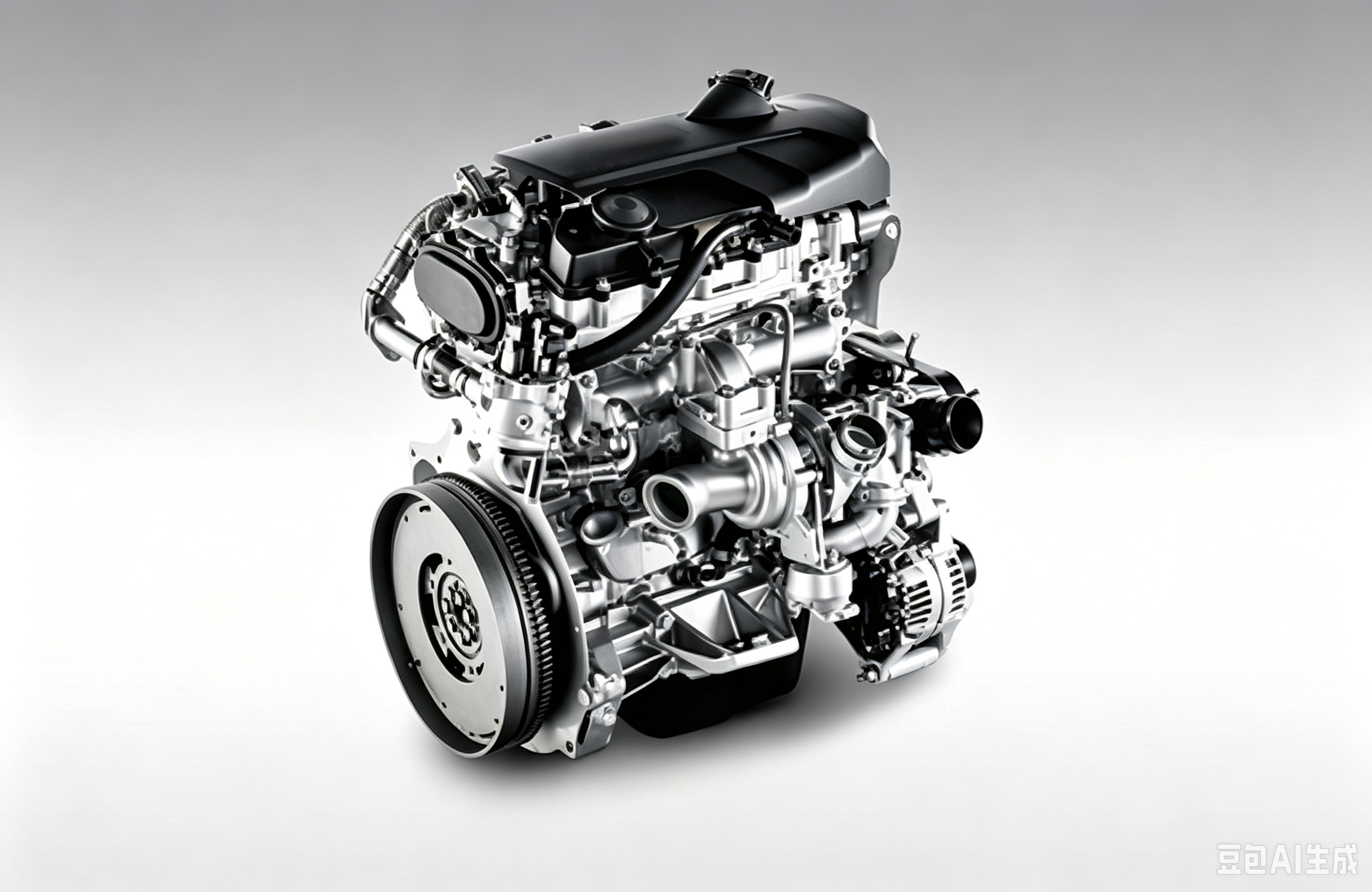

F1C 3.0T high-efficiency diesel engine.

Powerful output of 132kW / 430N·m.

Full compliance with China VI (b) emission standards.

30% maximum climbing grade; choose between 8AT automatic or 6MT manual transmission.

Product Configuration

X7/CX7 Model Configuration Table
1	Basic Parameters	Vehicle Type	N2 Category	N2 Category
2		Seats	3 Seats	3 Seats
3		Wheelbase (mm)	3300	4350
4		Vehicle Dimensions LWH (mm)	5950x2150x2315	7403x2154x2330
5		Gross Vehicle Weight (kg)	6500	6800
6		Emission Standard	China VI (b)	China VI (b)
7		Max. Speed (km/h)	120	120
8		Min. Turning Radius (m)	6.05	7.5
9	Powertrain	Engine Model	F1CE8481M	F1CE8481M
10		Displacement	3.0L (Diesel)	3.0L (Diesel)
11		Max. Power (kW)	132	132
12		Max. Torque (N·m)	430	430
13		Transmission Type	8AT / 6MT	6MT
14		Fuel Tank Capacity (L)	100	100
15		Max. Climbing Grade	30%	30%
16	Chassis & Suspension	Drive Type	Front-engine, Rear-wheel drive (FR)	Front-engine, Rear-wheel drive (FR)
17		Body Structure	Body-on-frame	Body-on-frame
18		Front Suspension	Double wishbone independent with torsion bar	Double wishbone independent with torsion bar
19		Rear Suspension	Leaf spring dependent	Leaf spring dependent
20		Number of Rear Wheels	Dual rear tires (4)	Dual rear tires (4)
21	Safety Config.	Driver Airbag	●	●
22		Passenger Airbag	√	√
23		ABS	●	●
24		EBD	●	●
25		ESC	●	●
26		TPMS	●	●
27		Rear Parking Sensors	●	●
28		Full-size Spare Tire	●	●
29	Smart Cockpit	IVECONNECT Smart System	●	●
30		Full LCD Digital Instrument Cluster	●	●
31		Multi-function Steering Wheel	●	●
32		Steering Wheel Adjustment	● (8AT only)	√
33		Air Conditioning Control	Manual A/C	Manual A/C
34		Driver's Seat	6-way Adjustable Seat	6-way Adjustable Seat
35		Front Electric Windows	●	●
36		Exterior Mirrors (Elec. Adj. + Heated)	●	●
37		Remote Key	●	●
38	Lighting & Exterior	LED Daytime Running Lights	●	●
39		Front Fog Lights	●	●
40		Low/High Beam Headlights	Halogen	Halogen
41		Body Color	Alpine White	Alpine White

Note: ● Standard; √ Optional (Customer confirmed)

X7/CX7 Model Configuration Table
1	Basic Parameters	Vehicle Type	N2 Category	N2 Category
2		Seats	3 Seats	3 Seats
3		Wheelbase (mm)	3300	4350
4		Vehicle Dimensions LWH (mm)	5950x2150x2315	7403x2154x2330
5		Gross Vehicle Weight (kg)	6500	6800
6		Emission Standard	China VI (b)	China VI (b)
7		Max. Speed (km/h)	120	120
8		Min. Turning Radius (m)	6.05	7.5
9	Powertrain	Engine Model	F1CE8481M	F1CE8481M
10		Displacement	3.0L (Diesel)	3.0L (Diesel)
11		Max. Power (kW)	132	132
12		Max. Torque (N·m)	430	430
13		Transmission Type	8AT / 6MT	6MT
14		Fuel Tank Capacity (L)	100	100
15		Max. Climbing Grade	30%	30%
16	Chassis & Suspension	Drive Type	Front-engine, Rear-wheel drive (FR)	Front-engine, Rear-wheel drive (FR)
17		Body Structure	Body-on-frame	Body-on-frame
18		Front Suspension	Double wishbone independent with torsion bar	Double wishbone independent with torsion bar
19		Rear Suspension	Leaf spring dependent	Leaf spring dependent
20		Number of Rear Wheels	Dual rear tires (4)	Dual rear tires (4)
21	Safety Config.	Driver Airbag	●	●
22		Passenger Airbag	√	√
23		ABS	●	●
24		EBD	●	●
25		ESC	●	●
26		TPMS	●	●
27		Rear Parking Sensors	●	●
28		Full-size Spare Tire	●	●
29	Smart Cockpit	IVECONNECT Smart System	●	●
30		Full LCD Digital Instrument Cluster	●	●
31		Multi-function Steering Wheel	●	●
32		Steering Wheel Adjustment	● (8AT only)	√
33		Air Conditioning Control	Manual A/C	Manual A/C
34		Driver's Seat	6-way Adjustable Seat	6-way Adjustable Seat
35		Front Electric Windows	●	●
36		Exterior Mirrors (Elec. Adj. + Heated)	●	●
37		Remote Key	●	●
38	Lighting & Exterior	LED Daytime Running Lights	●	●
39		Front Fog Lights	●	●
40		Low/High Beam Headlights	Halogen	Halogen
41		Body Color	Alpine White	Alpine White

Note: ● Standard; √ Optional (Customer confirmed)
