H4_ANHUI CORONET TECH.CO.，LTD.

Appreciation

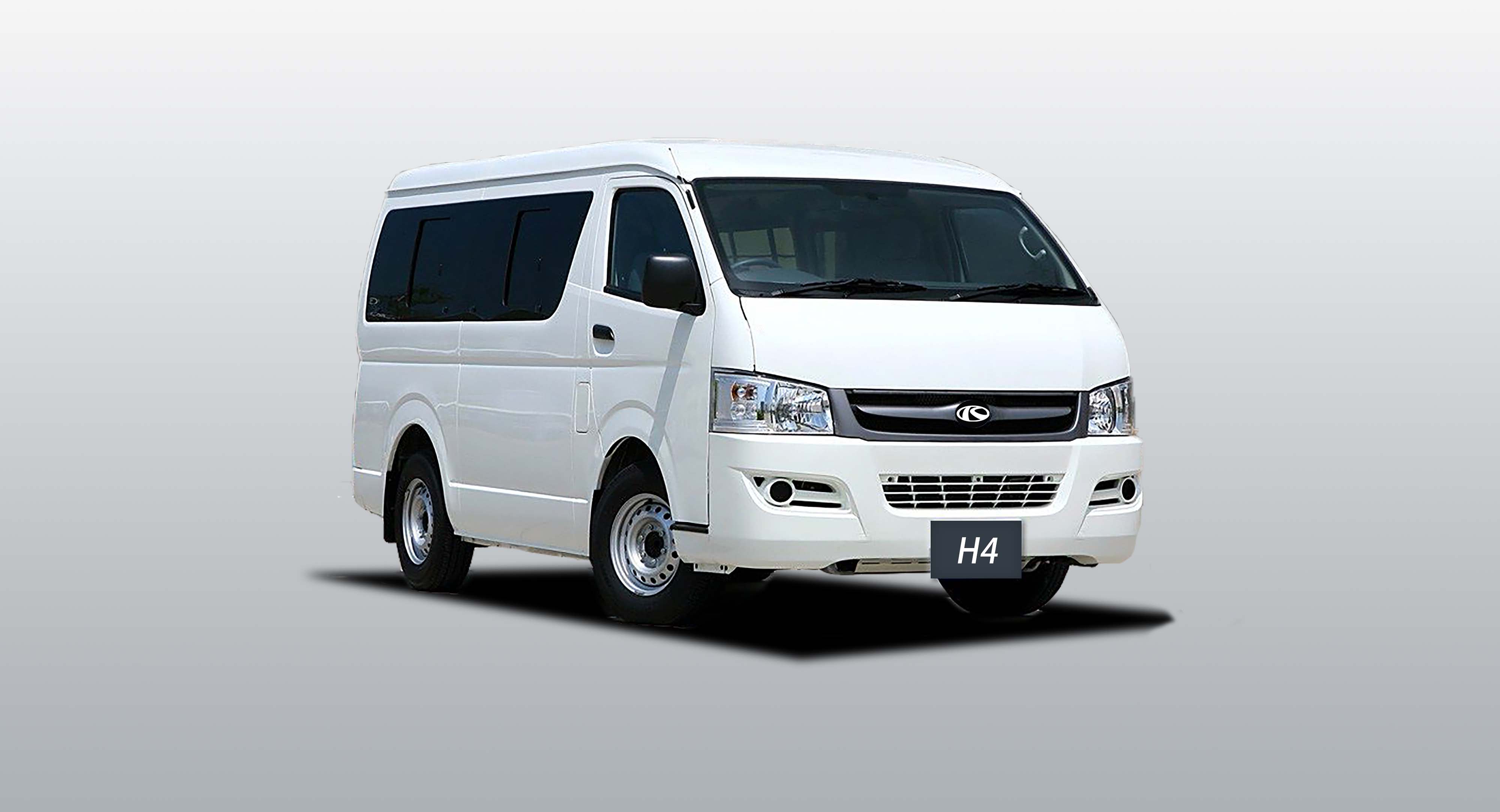

Vehicle Overview

Length(mm)

4840

Width(mm)

1880

Height(mm)

2080

Wheelbase(mm)

2570

Jasmine white

Product Highlights

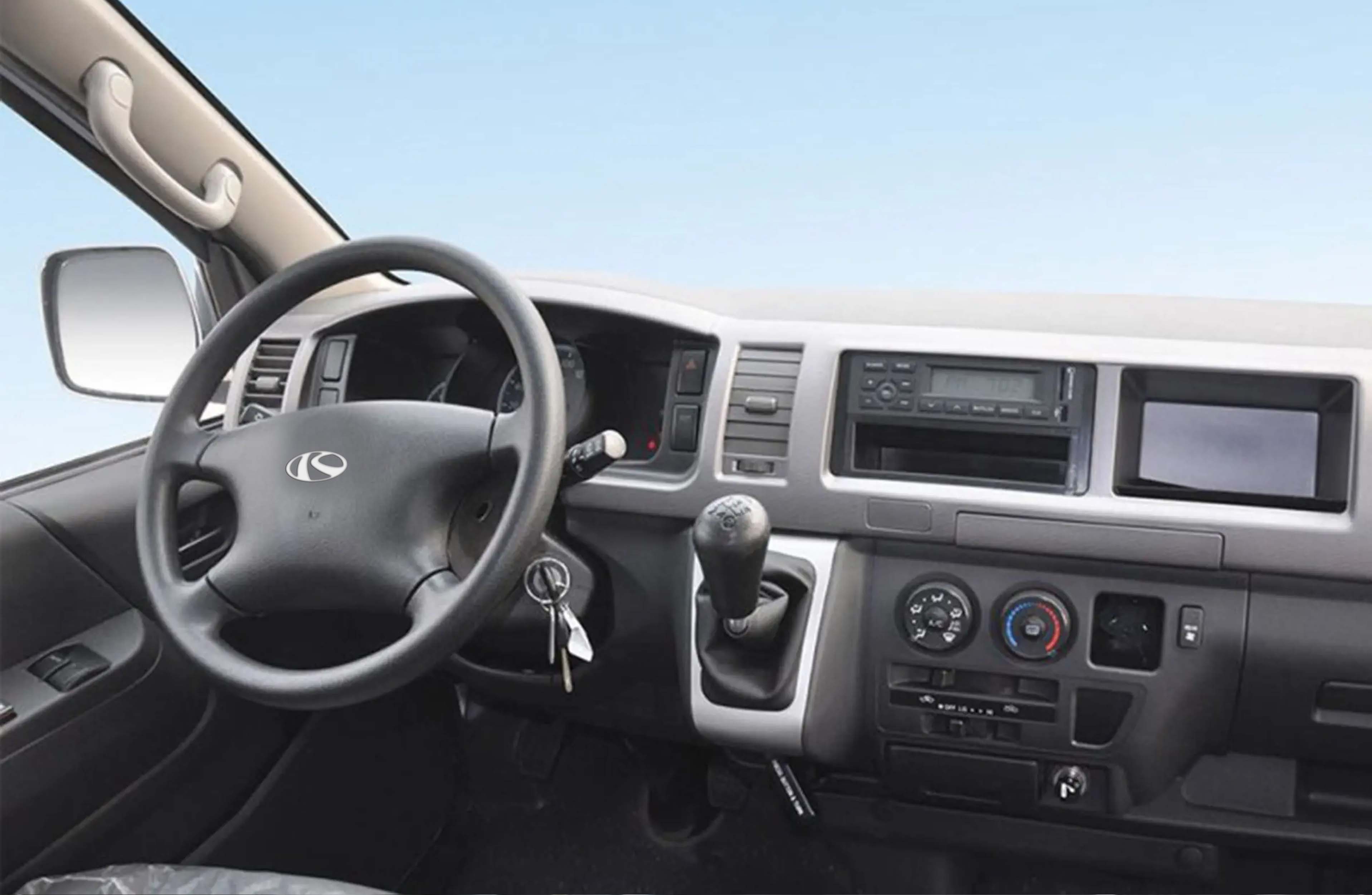

Enjoy the luxurious interior first

· Dark interior, mature and stable, low-key without losing the atmosphere.

· Ergonomic design, more comfortable driving.

Smart space leisurely travel

· The four-seater folding front rollover seat provides ample luggage area for easy business travel.

· Wide-body models, seats 2 to 3, more than similar models one column, carrying passengers more efficient operation.

Product Configuration

H4 Model Configuration Table
New Energy Pure Electric		o
Left-Hand Drive/Right-Hand Drive		o
1	Length×width×height（mm）	4840×1880×2080
2	Wheelbase（mm）	2570
3	Engine model	DK4B1
4	Seats	16(3+3+3+3+4)
5	Radial tire	195R15C
6	Transmission	manual 5 speeds, flexible shaft control
7	Max. torque（Nm/rpm）	260/1800-2600(N.m/rpm)
8	Rated output（kw/rpm）	100/3800(kw/rpm)
9	Max. speed	≥130
10	Fuel type	Diesel engine
11	Emission	Euro IV
12	Displacement	2.498
13	Intake type	turbocharging
14	Capacity of fuel tank（L）	70
15	Clutch	single disc, hydraulic control
16	Brake system	disc/ drum, ABS+EBD, initiative vacuum booster
17	Suspension	front double wishbone independent suspension/rear variable rate leaf spring（four pcs)
18	Black manual wing mirror	●
19	Manual door lock	●
20	Power driver & co-driver window	●
21	Anti-glare inner rear view mirror	●
22	Intermittent front wiper	●
23	Rear wiper	-
24	Front washer	●
25	Rear washer	-
26	Rear electric defroster	-
27	Sun visor (with mirror)	●1
28	Tiltable steering wheel	●
29	High-mount brake lamp	●
30	Manual sliding door	●
31	Black door handle	●
32	UV-locking front windscreen	●
33	Rear side white glasses	●
34	Combination lamp	●
35	Painting grill	●
36	Steel rim	●5
37	Dark gray interior	●simple
38	Carpet	Front-PVC,rear-PVC+lining plate
39	Front heater(including defroster)	●
40	Rear heater	●
41	Front and rear independent A/C	●
42	Direct blowing A/C vents	●
43	Radio( with USB connect)	●
44	Speakers	●2
45	Overhead light	●1
46	Ordinary paint	●
47	Metallic paint	o
48	High top 2285mm	o
49	Flip seat	o
50	Chrome-plated front grille	o
51	Remote control central door lock	o
52	LED combination headlights	o
53	Astern radar	o
54	Aluminium alloy wheel hub	o
55	Economy seat	o
56	Chrome-plated electric rearview mirror	o
57	Chrome doorknob	o
58	Fog lamp	o
59	Fully enclosed dark privacy side window glass	o
60	Built-in side sliding window	o
61	Tire pressure monitoring	o

Note: ● is standard; O is optional; - is not available

H4 Model Configuration Table
New Energy Pure Electric		o
Left-Hand Drive/Right-Hand Drive		o
1	Length×width×height（mm）	4840×1880×2080
2	Wheelbase（mm）	2570
3	Engine model	DK4B1
4	Seats	16(3+3+3+3+4)
5	Radial tire	195R15C
6	Transmission	manual 5 speeds, flexible shaft control
7	Max. torque（Nm/rpm）	260/1800-2600(N.m/rpm)
8	Rated output（kw/rpm）	100/3800(kw/rpm)
9	Max. speed	≥130
10	Fuel type	Diesel engine
11	Emission	Euro IV
12	Displacement	2.498
13	Intake type	turbocharging
14	Capacity of fuel tank（L）	70
15	Clutch	single disc, hydraulic control
16	Brake system	disc/ drum, ABS+EBD, initiative vacuum booster
17	Suspension	front double wishbone independent suspension/rear variable rate leaf spring（four pcs)
18	Black manual wing mirror	●
19	Manual door lock	●
20	Power driver & co-driver window	●
21	Anti-glare inner rear view mirror	●
22	Intermittent front wiper	●
23	Rear wiper	-
24	Front washer	●
25	Rear washer	-
26	Rear electric defroster	-
27	Sun visor (with mirror)	●1
28	Tiltable steering wheel	●
29	High-mount brake lamp	●
30	Manual sliding door	●
31	Black door handle	●
32	UV-locking front windscreen	●
33	Rear side white glasses	●
34	Combination lamp	●
35	Painting grill	●
36	Steel rim	●5
37	Dark gray interior	●simple
38	Carpet	Front-PVC,rear-PVC+lining plate
39	Front heater(including defroster)	●
40	Rear heater	●
41	Front and rear independent A/C	●
42	Direct blowing A/C vents	●
43	Radio( with USB connect)	●
44	Speakers	●2
45	Overhead light	●1
46	Ordinary paint	●
47	Metallic paint	o
48	High top 2285mm	o
49	Flip seat	o
50	Chrome-plated front grille	o
51	Remote control central door lock	o
52	LED combination headlights	o
53	Astern radar	o
54	Aluminium alloy wheel hub	o
55	Economy seat	o
56	Chrome-plated electric rearview mirror	o
57	Chrome doorknob	o
58	Fog lamp	o
59	Fully enclosed dark privacy side window glass	o
60	Built-in side sliding window	o
61	Tire pressure monitoring	o

Note: ● is standard; O is optional; - is not available
