H5_ANHUI CORONET TECH.CO.，LTD.

Appreciation

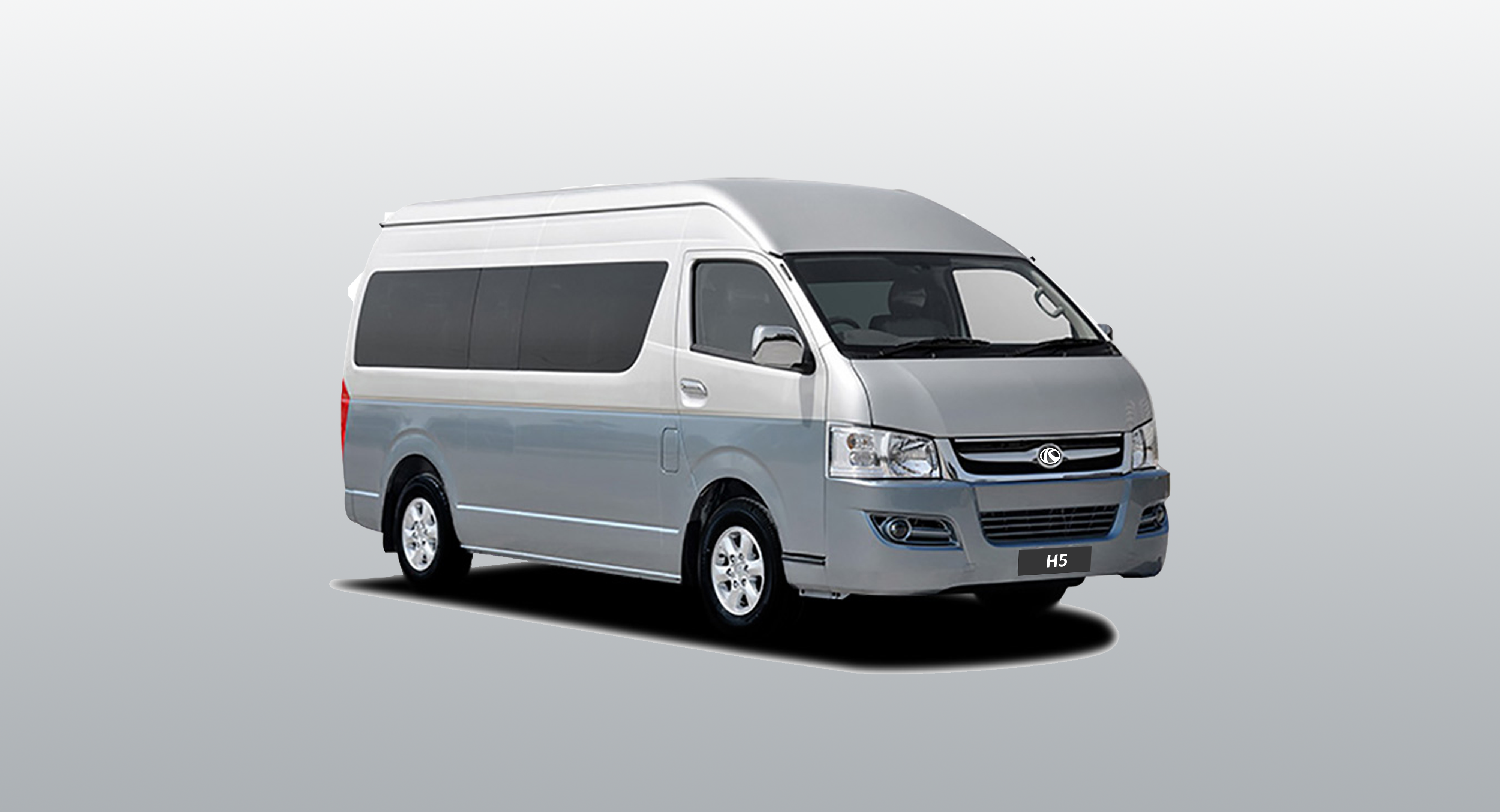

Vehicle Overview

Length(mm)

5380

Width(mm)

1880

Height(mm)

2285

Wheelbase(mm)

3110

Length(mm)

5380

Width(mm)

1880

Height(mm)

2285

Wheelbase(mm)

3110

silver gray
Jasmine white

Product Highlights

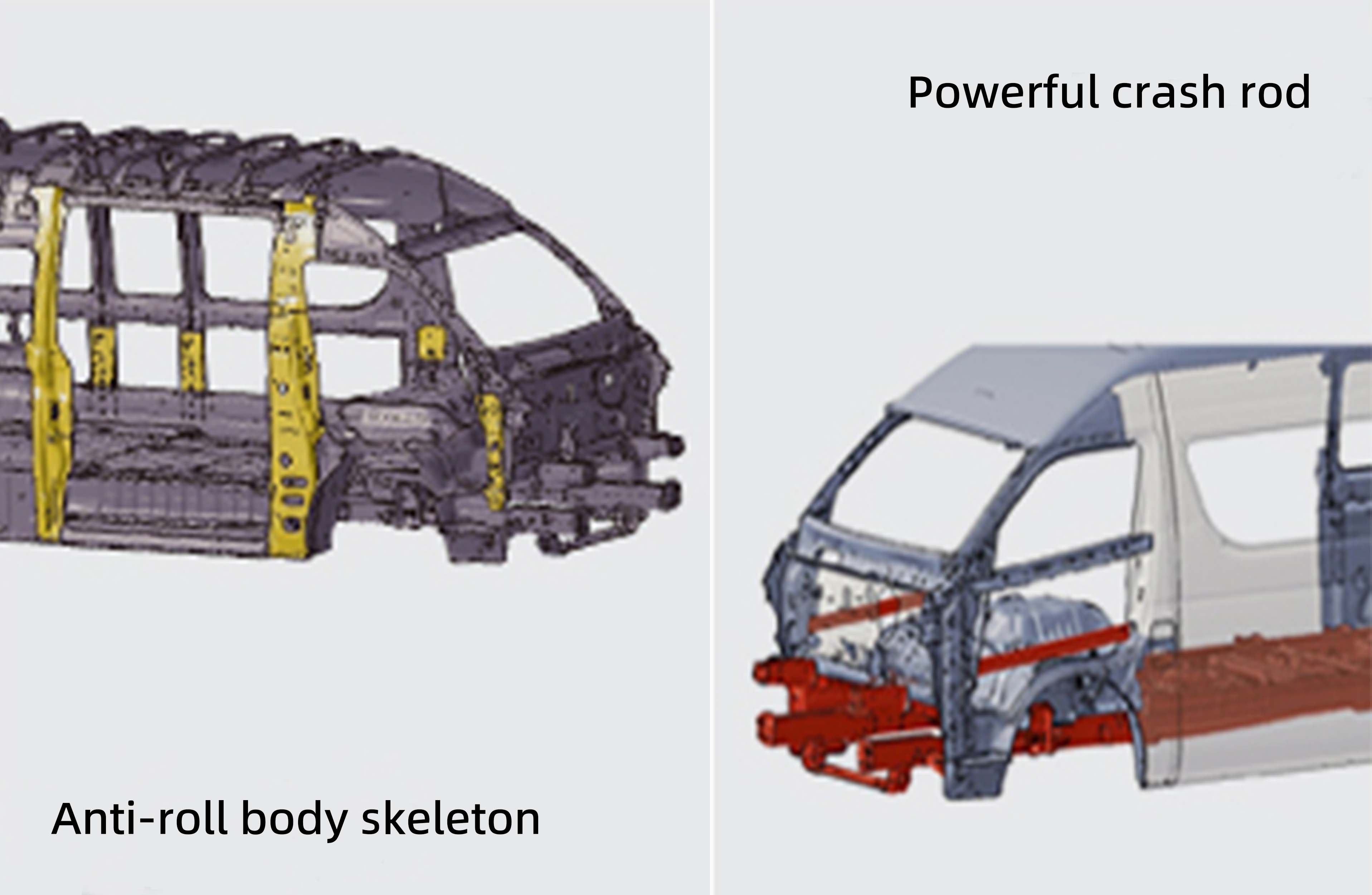

Safety protection in one

· Bearing body structure, lightweight body, reduce vehicle fuel consumption, more energy saving and environmental protection.

· Strong anti-collision rod and anti-rollover skeleton structure design to ensure passive safety performance.

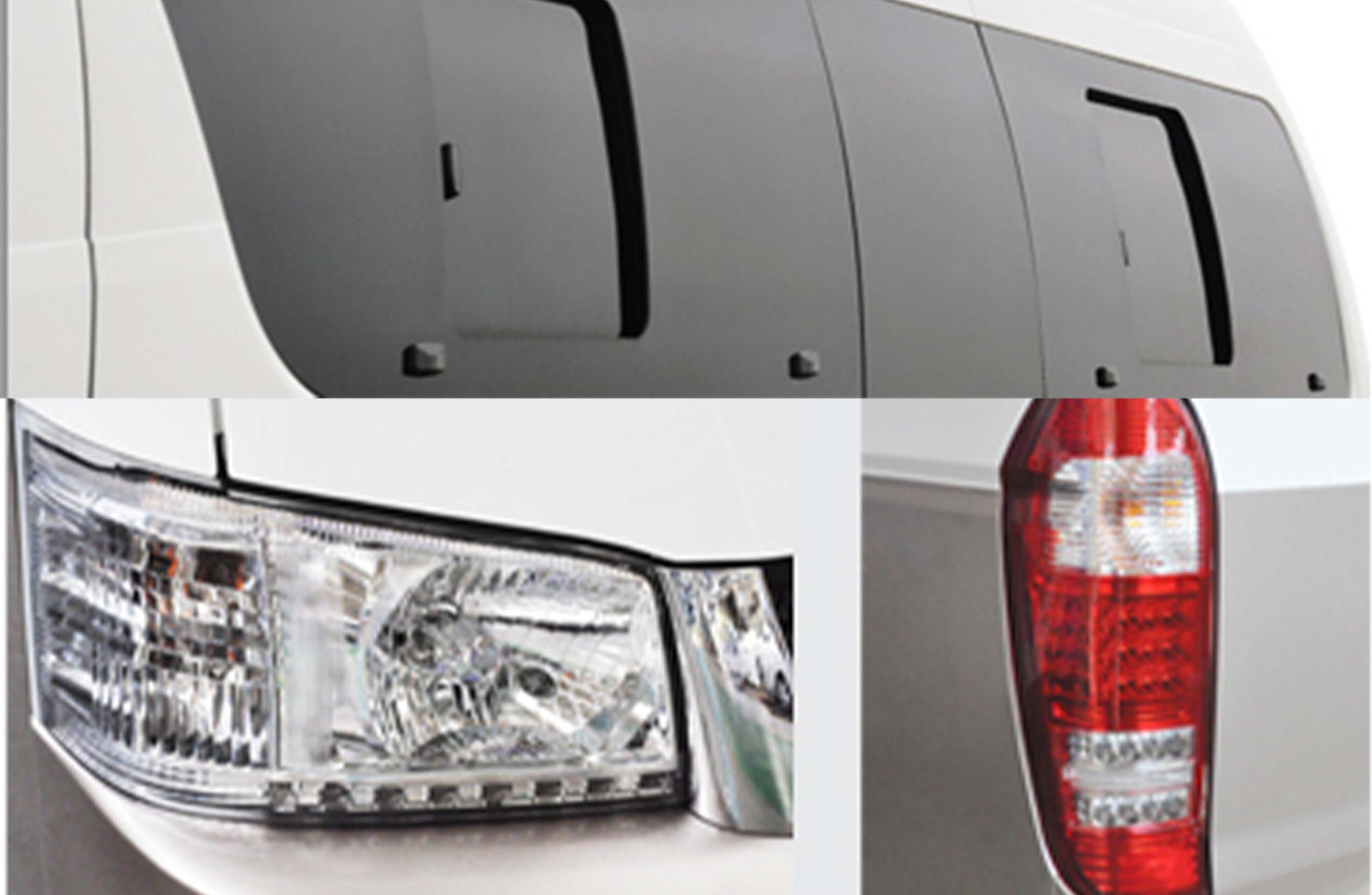

Beautiful and durable

· Built-in sliding window

· Classic front and rear lights

Product Configuration

H5 Model Configuration Table
New Energy Pure Electric		o
Left-Hand Drive/Right-Hand Drive		o
1	Length×width×height（mm）	5380×1880×2285
2	Wheelbase (mm)	3110
3	Engine mode	DK4B1
4	Seats	17
5	Tire	195R15C radial tire
6	Max. torque (N.m/rpm)	260/1800-2600(N.m/rpm)
7	Rated output( kw/rpm)	100/3800(kw/rpm)
8	Fuel type	Diesel engine
9	Emission	EURO IV
10	Displacement（L）	2.498
11	Capacity of fuel tank（L）	70
12	Clutch	single disc, hydraulic control
13	Transmission type	manual 5 speeds, flexible shaft control
14	Brake system	disc/ drum, initiative vacuum booster,ABS+EBD
15	Rear axle	integrated pressing rear axel
16	Suspension	front double wishbone independent suspension/ rear variable rate leaf spring, power steering system
17	Metallic color/ solid color	●
18	Manual sliding door	●
19	Anti-UV front windshield	●
20	White side window glasses	●
21	Combination lamp	●
22	High mount brake lamp	●
23	Painting front grill	●
24	Steel wheels*5	●
25	Black door handle	●
26	Gray interior	●
27	Luxury dashboard	●
28	Sliding driver& co-driver seat,three-point safety belt	●
29	Independent passenger seat with adjustable backrest, two-point safety belt	●
30	PVC floor	●
31	Simple interior	●
32	Glove box between driver&co-driver	●
33	Front heate & rear heater	●
34	Front and rear independent A/C, spray type roof	●
35	Roof lamp*2	●
36	Black manual wing mirror	●
37	Manual door lock	●
38	Power driver & co-driver window	●
39	Anti-glare inner rear view mirror	●
40	Intermittent front wiper, front washer	●
41	Radio with 2 speaker	●
42	Tiltable steering wheel	●
43	Visor	●

Note: ● is standard；O is optional

H5 Model Configuration Table
New Energy Pure Electric		o
Left-Hand Drive/Right-Hand Drive		o
1	Length×width×height（mm）	5380×1880×2285
2	Wheelbase (mm)	3110
3	Engine mode	DK4B1
4	Seats	17
5	Tire	195R15C radial tire
6	Max. torque (N.m/rpm)	260/1800-2600(N.m/rpm)
7	Rated output( kw/rpm)	100/3800(kw/rpm)
8	Fuel type	Diesel engine
9	Emission	EURO IV
10	Displacement（L）	2.498
11	Capacity of fuel tank（L）	70
12	Clutch	single disc, hydraulic control
13	Transmission type	manual 5 speeds, flexible shaft control
14	Brake system	disc/ drum, initiative vacuum booster,ABS+EBD
15	Rear axle	integrated pressing rear axel
16	Suspension	front double wishbone independent suspension/ rear variable rate leaf spring, power steering system
17	Metallic color/ solid color	●
18	Manual sliding door	●
19	Anti-UV front windshield	●
20	White side window glasses	●
21	Combination lamp	●
22	High mount brake lamp	●
23	Painting front grill	●
24	Steel wheels*5	●
25	Black door handle	●
26	Gray interior	●
27	Luxury dashboard	●
28	Sliding driver& co-driver seat,three-point safety belt	●
29	Independent passenger seat with adjustable backrest, two-point safety belt	●
30	PVC floor	●
31	Simple interior	●
32	Glove box between driver&co-driver	●
33	Front heate & rear heater	●
34	Front and rear independent A/C, spray type roof	●
35	Roof lamp*2	●
36	Black manual wing mirror	●
37	Manual door lock	●
38	Power driver & co-driver window	●
39	Anti-glare inner rear view mirror	●
40	Intermittent front wiper, front washer	●
41	Radio with 2 speaker	●
42	Tiltable steering wheel	●
43	Visor	●

Note: ● is standard；O is optional
